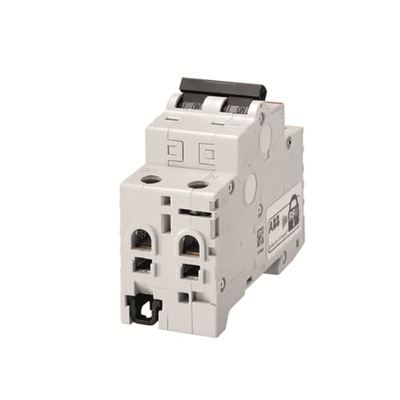

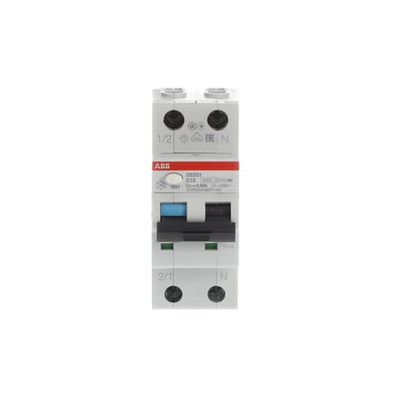

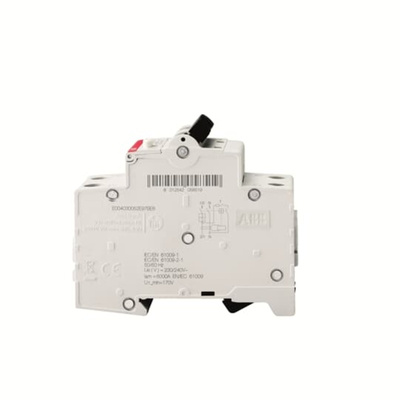

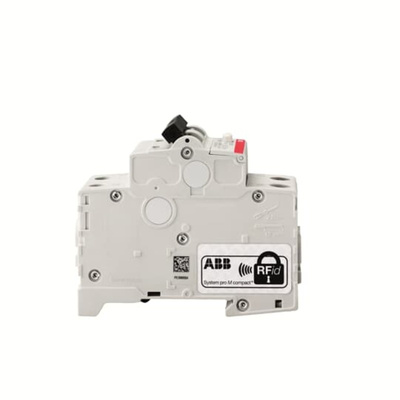

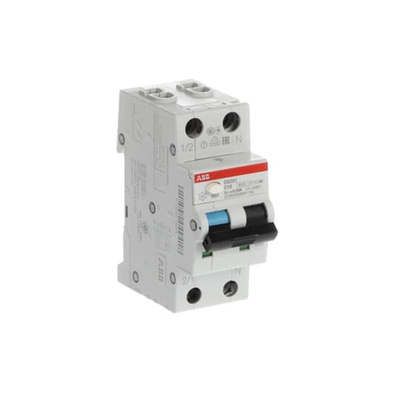

2CSR255080R1104 DS201 C10 AC30, ABB RCBO, 10A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range

ABB RCBO, 230V Rated Voltage, 6kA Rated Short-Circuit Capacity - DS201 Series - 2CSR255080R1104 DS201 C10 AC30

Use this RCBO from ABB to protect your single-phase circuits against electrical faults. It combines overload and short circuit protection to limit damage and reduce downtime. Integrated earth leakage detection helps to improve user safety by preventing electric shocks, while an IP40 rating indicates it's protected against tools and wires greater than 1mm. A blue window on the toggle switch simplifies problem identification by flagging an earth fault. Thanks to compact dimensions of 69 (L) x 35 (W) x 85mm (D), the unit fits easily on high-density distribution boards.

Features & Benefits

• Lightweight at just 200g, so puts minimal strain on your setup
• Mechanical endurance of 20,000 cycles for consistent long-term performance
• Impact resistant for reliable operation in heavy-duty applications

Applications

• Industrial equipment
• Residential electrical installations
• Agricultural machinery
• Food and beverage processing

At what temperatures can I use this RCBO?

The breaker has an operating temperature range between -25°C and +55°C, so is safe for use in demanding environments.

How do I install this RCBO?

Simply clip it onto a DIN rail for convenient and tool-free installation.
