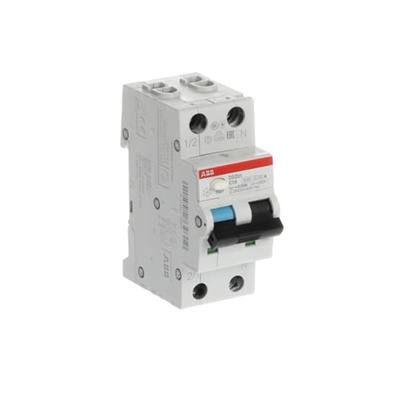

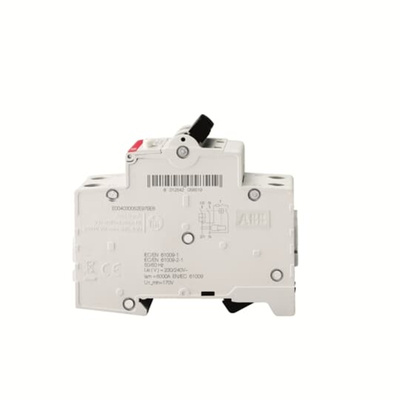

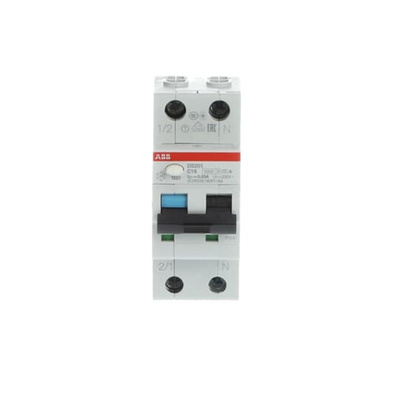

2CSR255180R1164 DS201 C16 A30, ABB RCBO, 16A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type A, System Pro M Compact Range

ABB RCBO, 230V Voltage Rating, Type C Tripping Characteristics - DS201 Series - 2CSR255180R1164 DS201 C16 A30

Electrical faults giving your equipment a hard time? Protect your setup with this RCBO from ABB. It cuts the power supply when there's a current leakage or overload, greatly lowering the risk of electric shocks or fire. As a type-C breaker, it trips in just a few milliseconds when it receives 5 to 10 times its 16A current rating. This lightning-fast response time reduces the severity of faults and keeps the amount of energy released at a safe level. The unit handles high fault currents reliably, thanks to its 6kA short-circuit capacity, making it ideal for installation in settings where equipment safety is a top priority.

Features & Benefits

• DIN rail mounting is simple and needs no specialised tools, saving time and effort
• Electrical endurance of 20,000 operating cycles for long-term performance
• IP20 rating indicates it's touch-proof and protected against objects larger than 12mm

Applications

• Office buildings
• Chemical laboratories
• Factories

How do I reset this RCBO after it has tripped?

Before you reset the RCBO, it's important to confirm that the fault that caused it to trip has been cleared. You can t flip the toggle switch back to the ON position.
