2CSR275180R1165 DS201 M B16 A30, ABB RCBO, 16A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type B, System Pro M Compact Range

ABB RCBO, 230V Rated Voltage, 10kA Rated Short-Circuit Capacity - DS201 Series - 2CSR275180R1165 DS201 M B16 A30

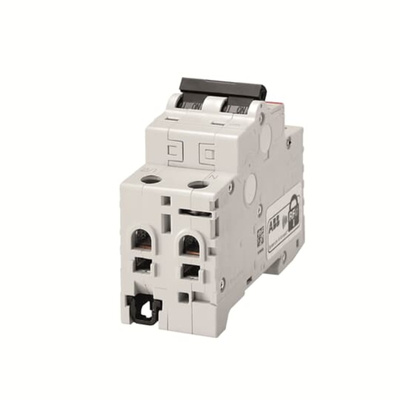

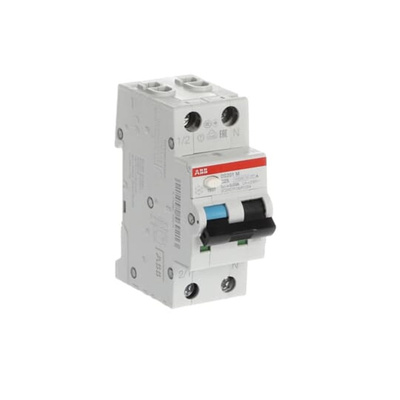

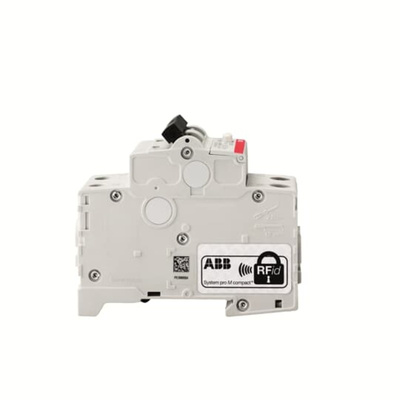

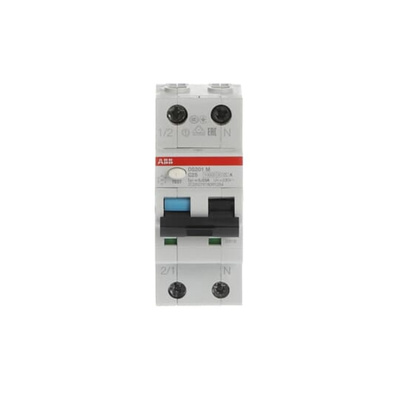

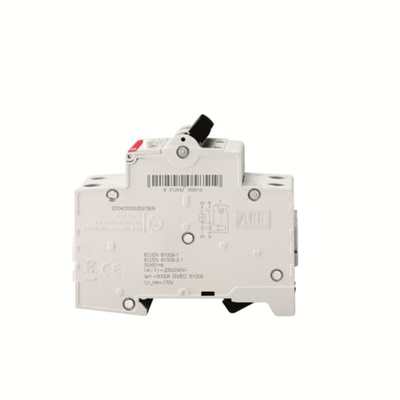

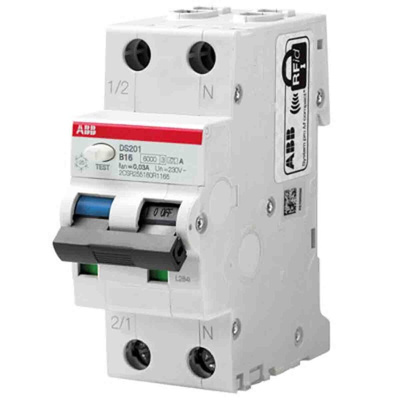

Looking for a complete solution to protect your single-phase electrical networks? This 2-pole RCBO from ABB immediately interrupts power supplies to help prevent damage caused by overloads and short circuits. It also safeguards against earth fault currents for improved safety. You can easily identify earth problems, thanks to the blue flag status indicator. The small unit has dimensions of 69 (L) x 35 (W) x 85mm (D), so takes up little space on crowded distribution boards. A robust plastic housing with an IP40 rating is on hand to protect against damage caused by tools and wires greater than 1mm.

Features & Benefits

• Wide operating temperature range between -25°C and +55°C for use in demanding conditions
• Mechanical endurance of 20,000 cycles for reliable performance
• Toggle switch for easy resetting

Applications

• Automated manufacturing processes
• Industrial pumps
• Electrical networks
• Computer rooms

What's the current rating of this RCBO?

It has a current rating of 16A, so can handle heavy-duty applications.

What are the connection sizes and specifications of this RCBO?

This RCBO has failsafe bi-directional cylinder-lift screw terminals. It has a connecting capacity for 10/10mm² busbar cables, 16mm² flexible cables and 25mm² stranded cables, so you can set it up according to your system's needs.
