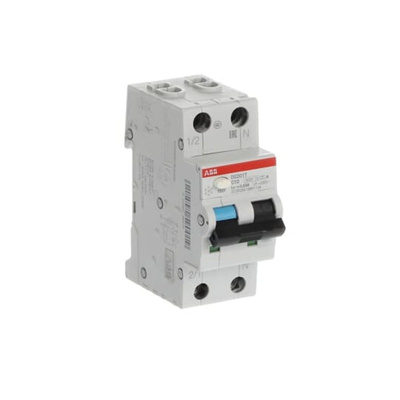

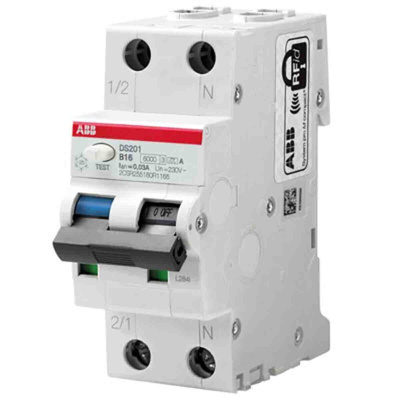

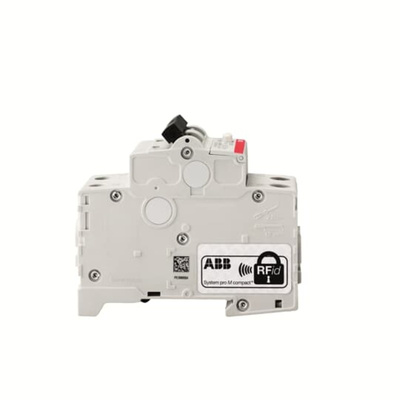

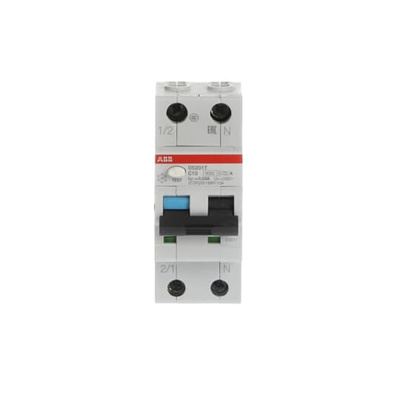

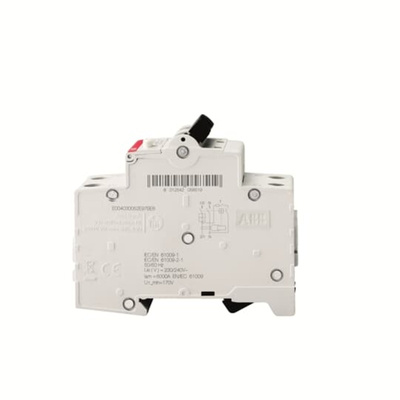

2CSR255080R2165 DS201 B16 AC100, ABB RCBO, 16A Current Rating, 2P Poles, 100mA Trip Sensitivity, Type B, System Pro M Compact Range

ABB RCBO, 100mA Trip Sensitivity, 6kA Breaking Capacity - DS201 Series - 2CSR255080R2165 DS201 B16 AC100

Boost workplace safety with this RCBO from ABB. The residual current device offers overcurrent protection to rapidly disconnect power supplies and prevent electric shocks or equipment damage. The versatile, dual-module component safeguards against overloads, short circuits and sinusoidal alternating earth faults. Its 100mA trip sensitivity avoids nuisance tripping and unnecessary downtime, while the IP40-rated housing limits damage caused by tools and wires larger than 1mm. Thanks to 10,000 electrical endurance cycles, you can rely on this breaker for consistent performance.

• DIN rail mounting for quick and simple installation
• IP20-rated contacts are touch-proof to prevent injuries
• Colour-coded toggle switch for easy identification of on/off positions
• Wide operating temperature range between -25°C and +55°C for use in harsh conditions

Applications

• Industrial automation
• Medical facilities
• Research and development labs
• Construction industry

The ABB DS201 series 16A residual current circuit breaker mainly used for overload protection. It has two-modules width for the protection of end user single-phase circuits against overload and short-circuit current , protection against the effects of sinusoidal alternating earth fault current , direct contacts and indirect contacts.

Does an RCBO help to prevent fires?

Rated voltage 230V
Type of residual current is AC
Pollution degree is 2
Degree of protection for terminals IP20
Degree of protection for housing IP40

Yes, it not only prevents prolonged electric shocks but also disconnects power supplies instantaneously to stop the start and spread of fires.

Can I use this RCBO as a main switch?

Yes, it can replace your MCB or RCB, as it's essentially a circuit breaker paired with a residual current device.
