010042 DILER-22-G(24VDC), Eaton Contactor, 24 V dc Coil, 6 A, 2.6 W, 2NO + 2NC, 24 V

Eaton Contactor Overload Relays - DILE Mini Contactor Relays

Eaton's DILE mini contactor overload relays reflect a long tradition of reliable, code compliant and efficient power distribution in any automation and control environments. These circuit breakers provide premium protection for overheating wires, overloads and short circuits in residential, commercial, industrial and hazardous areas and are ideally suited for use within harsh environments with high temperatures.

The DILE mini auxiliary contactor overload relays have compact dimensions and a modular design for the highest packing densities. Their space-saving size allows these mini contactor relays to be used wherever small motors or loads need to be controlled and switched. With an extended performance range of up to 5.5 kW at 400 V, an output range up to 7A and extensive approvals that mean they are suitable to be used worldwide.

The DILE mini contactor relays are available as AC versions (for control current networks from 24 V to 480 V with 50 Hz or 60 Hz) or DC versions (for control current versions from 12 V to 220 V). The DC operated versions have the suppressor as a diode-resistor combination integrated into the device.

Within the DILER series of contactor overload relays Eaton offers both a spring-loaded terminal and a screw terminal version with interlocked opposing contacts allowing the devices to be expanded to up to 8 auxiliary contacts.

Features and Benefits

• AC drive - for control voltages from 24 V to 600 V, at 50 Hz or 60 Hz
• DC drive - for control voltages from 12 V to 250 V
• UL and CSA approvals
• For controlling motors up to 5.5 kW
• DC-operated devices with integrated suppressor circuits
• Auxiliary NC with mirror contacts for use in safety-related applications
• Low power consumption - can be controlled directly from a PLC

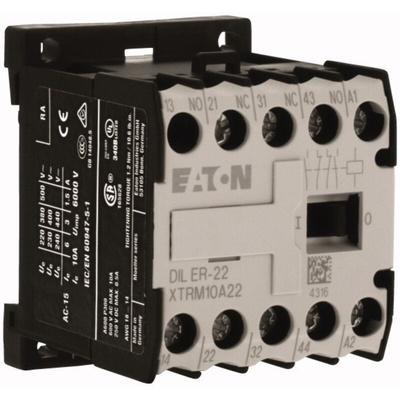

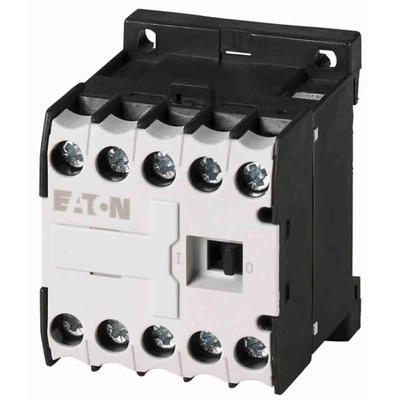

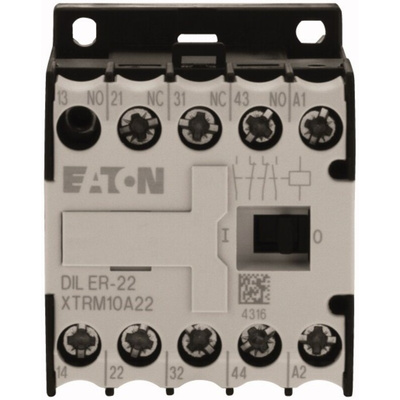

Eaton xStart Contactor Relay, 2NO/2NC, 2.6W Power Rating - DILER Series - 010042 DILER-22-G(24VDC)

Ensure your motor remains in good working condition with this contactor relay from Eaton. It's used to prevent a motor from becoming strained and wearing through its coils due to overloads, overheating or short circuits. The two normally open (NO) and two normally closed (NC) contacts are connected to your circuit to continually monitor the current passing through. If the full load current (FLC) and contact rating maximum allowance of 6A (amperes) is exceeded, the device switches off the current.

Features & Benefits

• Screw terminals ensure a secure fit, even with vibration
• Operating temperature range of -25°C to +40°C for use in demanding industrial environments
• IP20 (ingress protection) rating indicates the relay is touch-proof and protected from items over 12mm in size

Is this contactor relay designed for use with AC (alternating current) or DC (direct current) circuits?

Both – it's designed for use with AC (for control voltages from 24 V to 600 V, at 50 Hz or 60 Hz) or DC (for control voltages from 12 V to 250 V) for motors up to 5.5 kW.

Where should this contactor relay be installed?

This mini contactor relay is designed to be mounted onto a DIN rail.

Note

Eaton formerly known as Moeller

Datasheet - Eaton DILER-22-G(24VDC)
