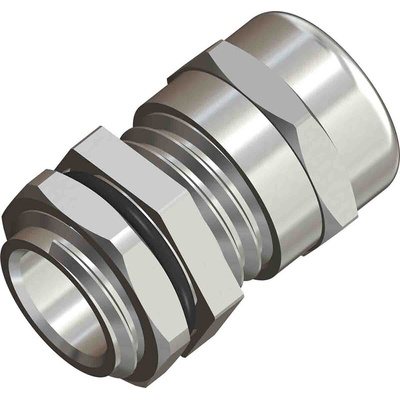

RS PRO Silver Metal Cable Gland, PG9 Thread, 4mm Min, 8mm Max, IP68

RS PRO PG9 Cable Gland with Locknut

The RS PRO range of cable glands keeps on improving. We are pleased to offer a series of PG9 cable glands with locking nut, made from nickel-plated brass and designed for use in electrical cable installations. These IP68 cable glands are perfect for protecting cables from water ingress and dust for both internal and external applications.

Features and Benefits

• PG9 x 1.5
• Protect cables
• Completely sealed against dust
• Excellent water resistance
• Locknut and seal supplied
• High-quality nickel-plated brass

Specification

• Cable Diameter 4-8 mm
• External Thread: PG9
• Material: Brass Nickel Plated
• Temperature Range: -40°C to 100 °C
• Degree of Protection: IP68
• Wrench Size 1: 17 mm
• Thread Length: 6 mm
• Tightening Torque: 6 Nm

What is a cable gland?

Cable glands are a standard cable entry device. They are handy accessories for ensuring a tight seal and complete protection from the area which the cable is feeding into. They work by being screwed into an already threaded hole or socket. The wire, still sealing the wall or enclosure, will then enter through the carefully sized hole. RS PRO nickel plated brass cable glands are rated at IP68, which provide excellent use within indoor or outdoor environments.

What are cable glands used for?

There are various types of applications that would benefit from or require a cable gland. Used by electrical engineers who need to run cables and wires through to an area that will need to be enclosed or sealed. Typical applications include;

• Machinery with delicate internals
• Telecommunications
• Flowmeters
• Underwater power generators

RS PRO Datasheet
