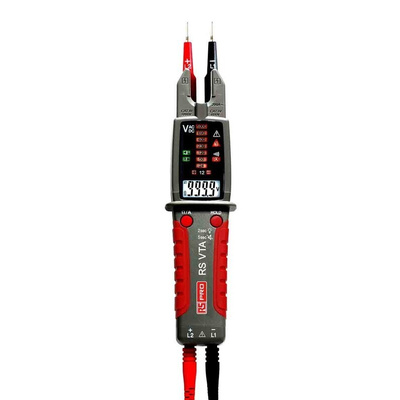

RS PRO APPA VTA, Digital Voltage tester, 999.9V ac/dc, Continuity Check, Battery Powered, CAT IV With RS Calibration

RS PRO Multifunctional Voltage & Current Tester, True RMS Continuity Check, CAT IV 600 V

Introducing the multifunctional voltage and current tester from RS PRO, a high quality and robust true RMS electrical tester ideal for carrying out a range of current, voltage and continuity tests. This versatile tester is designed with safety and practicality in mind, helping to reduce the amount of testing equipment required for the job at hand. The RS PRO voltage and current tester also features a built in current clamp for AC current measurement to 200A, as well as true RMS (ACV/ACA), a phase rotation test and CATIV safety rating making it ideal for use in industrial applications. For enhanced protection and safety, the tester features an IP65 enclosure, helping to protect it from water and dust ingress. Testing with the RS PRO voltage and current tester is made easy thanks to the bright and easy to read LED bar graph display.

Features and Benefits:

• 9999 Count digital display and bright LED bar graph display with white LED Auto back light display


• True RMS on ACV/ACA


• < 0.5s Bar Response time & < 0.5s DCV Reading response time


• Phase Rotation Indication


• Auto AC/DC 1000V capability and selection


• AC 200A Measurement


• 50K Ohms Resistance capability


• Input Peak Current: Is < 3.5mA @ 1000V


• Up to 16mm dia. Conductor AWG 4/0 wire


• 39mm Width Jaw size easy to use at a crowded space


• Auto Polarity Detection


• Single Pole test


• Bright torch (Pen Light)


• ELV Indication


• Self test (LED & LCD)


• Measure voltage without battery with LED bar and LCD display


• IP65 Rating


• Convenient battery door

Applications:

Current and voltage testers are electrical testing devices used to safely and efficiently carry out a range of parameter tests including current, voltage, continuity and more. Using a voltage and current tester allows you to safely identify potential faults in cables or wires in live circuits, prior to carrying out any repairs. Many electrical testers can include features such as LED indicators, audible buzzers, probes and more and are ideal for use in areas such as:

• Engineering


• Installation


• Maintenance


• DIY

Standards

IEC / EN 61010-1, IEC / EN 61010-2-033, IEC / EN 61010-031 for CAT IV 600V/CAT III 1000V EN61243-3.

FAQs

Does this include a continuity test function?

Yes, this tester features built-in buzzer sounds in the case of measuring resistance less than 1.8kΩ and may be up to 2.7kΩ. RX LED shows at the same time.

Are the test probes detachable?

Yes, the test probes are detachable for easy replacement.

What is included?

Battery (installed), Test Probes, Test Probe Protection, and User Manual.

RS PRO Datasheet
