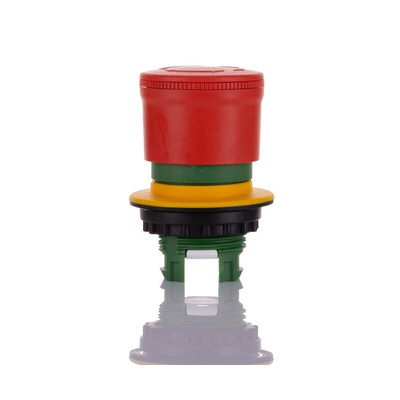

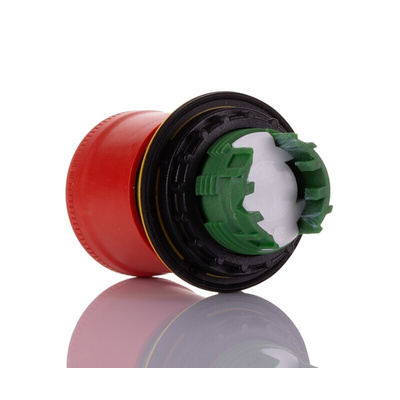

197536 M22-PVT30, Eaton Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, IP65, IP66, IP69

Eaton's versatile Small E-Stop emergency button

Although small in size the Eaton small E-Stop pushbuttons are big on safety. The small E-Stop button is an innovative control element that stands out for its compact size and novel illumination system, as well as for its modern design, proven quality and compatibility with the entire Eaton product range!

These compact devices are around 30% smaller than standard emergency stop buttons and are designed to deliver improved levels of safety in the smallest possible footprint. They come as either pull to release or turn to release for a quick and easy action to return the button to it's original position after it has been pushed and offers both 22 mm and 30 mm button head diameters.

Eaton's small E-Stop range offers illumination ready versions when paired with an LED contact block. The innovative 360° illuminated ring, allows up to 7 colour choices when used in conjunction with the M22-FLED-RGB to increase safety and visibility in multiple automation applications

These push buttons include a high degree of protection (IP69) which offers protection against both water and dust making these small push buttons easy to install and use in virtually any working environment.

Eaton Compact Emergency Stop Push Button, 51mm Depth, 30mm Diameter - RMQ-Titan Series - 197536 M22-PVT30

Prevent accidents in your work area using this emergency stop push button from Eaton. It's designed to safely halt equipment in the event of an emergency. It has a mechanical lifespan of 60,000 operations and an operating frequency of ≦600 operations/hour, so you can rely on it for long-term use. The device's panel mounting design lets you install it with ease in a control cabinet, and thanks to its compact dimensions of 51 (depth) x 30mm (diameter), it's suited to busy setups. You'll typically find a push button like this used in packaging facilities and on factory floors.

• Resistance to shock for added durability
• Wide operating temperature range between -25°C and +70°C for safe use in demanding environments
• Combined IP65, IP66 and IP69 ratings indicate protection against high-pressure water jets, steam and dust
• Bright red colour for immediate visibility in an emergency

How do I release this button after activation?

You can release this button by simply turning it. It comes with an illustration on its head to guide you on turning it in the right direction.

Note

Eaton formerly known as Moeller
