197538 M22-PVLT30, Eaton Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22mm Cutout, IP65, IP66, IP69

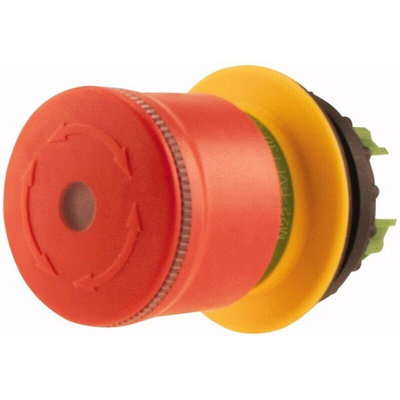

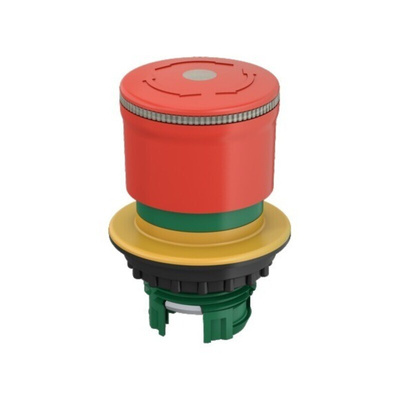

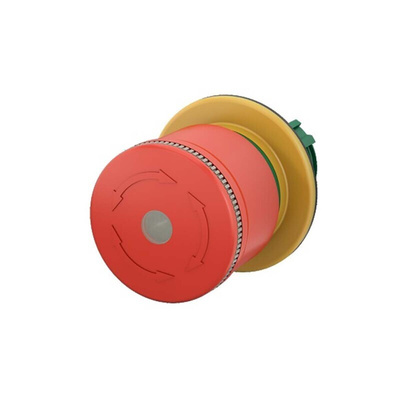

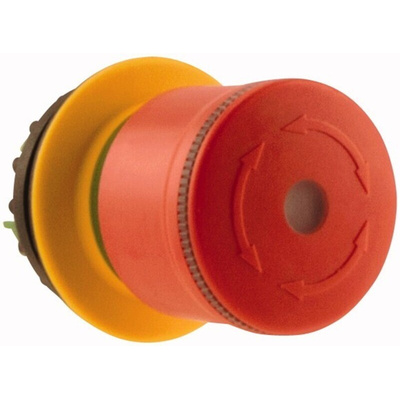

Eaton Emergency Stop Push Button, Twist Release, 30mm Diameter - E-STOP Series - 197538 M22-PVLT30

This compact emergency stop push button from Eaton offers a balance between high visibility and space efficiency. It's about 30% smaller than standard emergency stop buttons, so it's ideal for applications where space is at a premium. The 360° illuminated ring provides a clear and recognisable indication that the attached devices are operating, and you can set it to seven different colours when it's paired with an M22-FLED-RGB light block (such as 124-5198). You'll typically find units like this one in automation, construction and industrial applications.

Features & Benefits

• IP69 rating indicates protection against solid objects, high-pressure water jets and dust for use in challenging industrial environments
• Simple panel mounting via standard 22mm diameter cutout
• Compatible with flat rear contacts, with optional self-monitoring contacts
• Operating temperature range between -20°C and +70°C for reliable operation in tough working conditions

How do I return this button to its original position after pressing it?

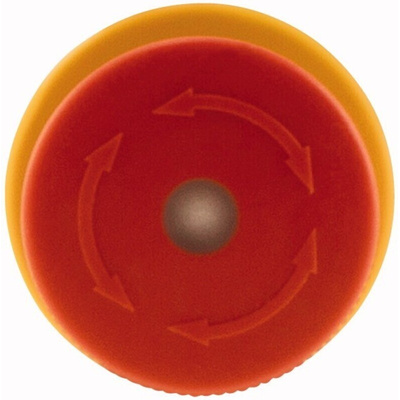

This component has a straightforward twist release mechanism to quickly unlock the button after you've pushed it. The arrows on the surface of the button clearly indicate the twist direction, making it easy for anyone to use in the event of an emergency.

Note

Eaton formerly known as Moeller
