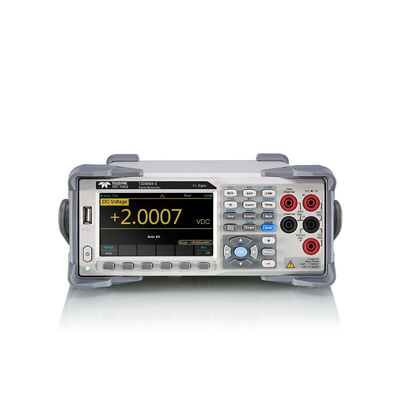

T3DMM4-5, Teledyne LeCroy T3DMM Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - UKAS Calibrated

Teledyne Test Tools new T3DMM series are dual display digital desktop multimeters that provide a rich and powerful feature set. The design is easy-to-use from the front-panel and computer-based control via USB or LAN. Each model is equipped with a 4.3 inch TFT-LCD true colour screen with 480 * 272 resolution for easy viewing. The T3DMM series also features numerical data display, histograms, trend charts, bar charts and statistics, in addition to the built-in arithmetic functions including Measurement statistics.

Real 4-1/2 digit (60,000 counts) readings resolution
Up to 150 rdgs/s measurement speed
True-RMS AC Voltage and AC Current measuring
1 Gb NAND flash size, Mass storage configuration files and data files
Built-in cold terminal compensation for thermocouple
Standard interface: USB Device, USB Host, LAN
DC Voltage: 600 mV ∼ 1000 V
DC Current: 600 μA ∼ 10 A
AC Voltage: True-RMS, 600 mV ∼ 750 V
AC Current: True-RMS,60 mA ∼ 10 A
2/4-Wire Resistance: 600 Ω ∼ 100 MΩ
Capacitance: 2 nF ∼ 10000 μF
Continuity Test: Rang e is fixed at 2 kΩ
Diode Test: Adjustable range is 0∼4 V.
Period Measurement: 2 μs ∼ 0.05 s
Temperature: Support for TC and RTD sensor
Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail
