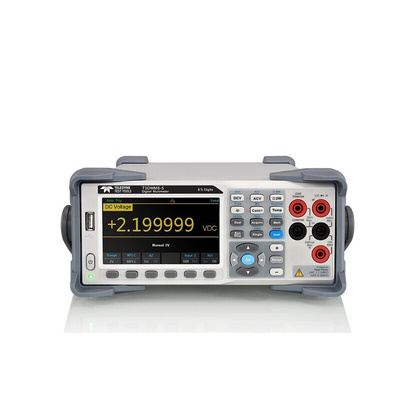

T3DMM6-5, Teledyne LeCroy T3DMM Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - UKAS Calibrated

Teledyne Test Tools new T3DMM series are dual display digital desktop multimeters that provide a rich and powerful feature set. The design is easy-to-use from the front-panel and computer-based control via USB or LAN. Each model is equipped with a 4.3 inch TFT-LCD true colour screen with 480 * 272 resolution for easy viewing. The T3DMM series also features numerical data display, histograms, trend charts, bar charts and statistics, in addition to the built-in arithmetic functions including Measurement statistics.

4.3” TFT-LCD, 480*272
Real 6-1/2 digits readings resolution (2,200,000 counts)
True-RMS AC Voltage and AC Current measuring
File management (support for U-disc and local storage)
Built-in cold terminal compensation for thermocouple
Standard interfaces: USB Device, USB Host, LAN
Built-in Help system makes information acquisition easier
Support remote control operation via SCPI commands.
Supports intelligent management system for laboratory based on BS framework and LAN.
DC Voltage: 200 mV - 1000 V
DC Current: 200 μA - 10 A
AC Voltage: True-RMS, 200 mV - 750 V
AC Current: True-RMS, 200 μA - 10 A
2/4-Wire Resistance: 200Ω - 100 MΩ
Capacitance: 2 nF - 100 mF
Diode Test: Adjustable range is 0 - 4V.
Frequency Measurement: 3 Hz - 1 MHz
Period Measurement: 1 μs - 333.33 ms
Temperature: Support for TC and RTD sensors
