DSBC-125-25-PPVA-N3, Festo Pneumatic Profile Cylinder - 1804956, 125mm Bore, 25mm Stroke, DSBC Series, Double Acting

Festo Double Acting Pneumatic Profile Cylinder, 125mm Bore, 25mm Stroke - DSBC-125-25-PPVA-N3

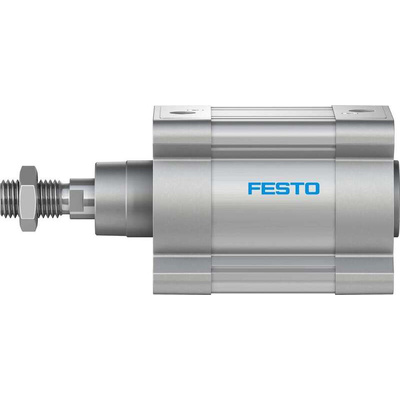

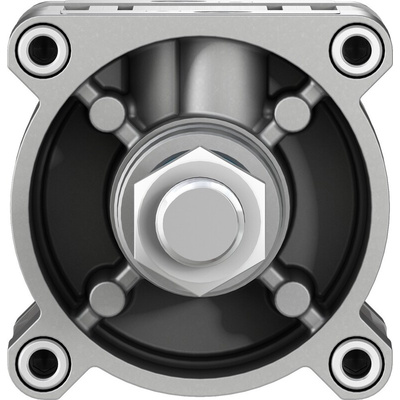

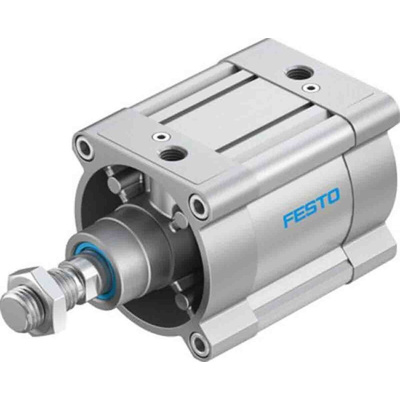

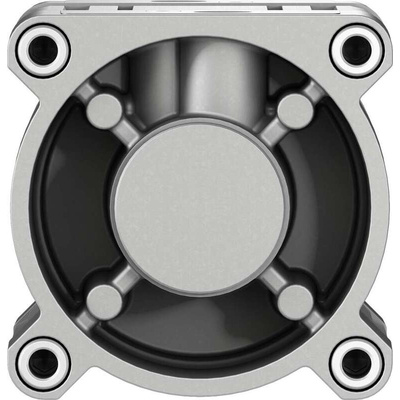

This double-acting pneumatic profile cylinder from Festo provides linear motion and force to industrial or automation processes. The component is made of die-cast aluminium material that provides durability and vibration resistance – it's suitable for use even in extreme environments. For enhanced automation, you can connect this device to a proximity sensor for position detection. It has seals made of thermoplastic elastomer (TPE) to prevent air leakages for effective performance. You'll find it commonly used in material handling equipment in factories.

• Wide operating temperature range of -20°C to +80°C for use in demanding environments
• 10 bar pressure limit for high-performance applications
• Cushioned on both ends by polyphenylene vinylene (PPV) material for safe and effective operation
• Can be assembled in any position to suit your design specifications

Applications

• Mixing machines
• Agricultural equipment
• Bottle rejection pushing devices

What's the difference between a single-acting and double-acting cylinder?

A single-acting cylinder creates force in only one direction and has one connection port. A double-acting cylinder works in both directions and has at least two ports.
