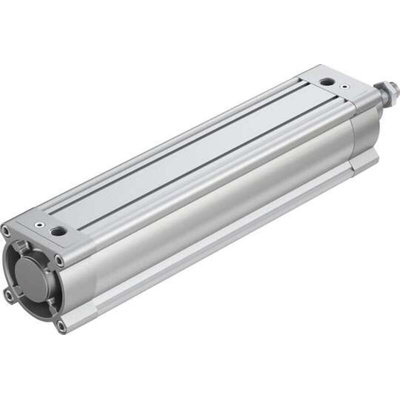

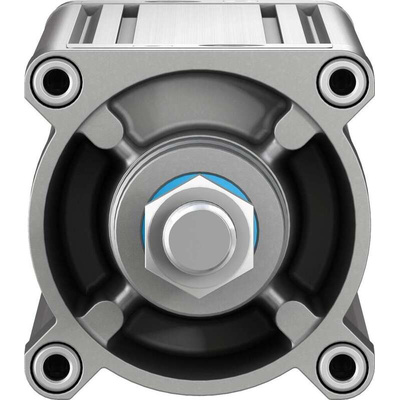

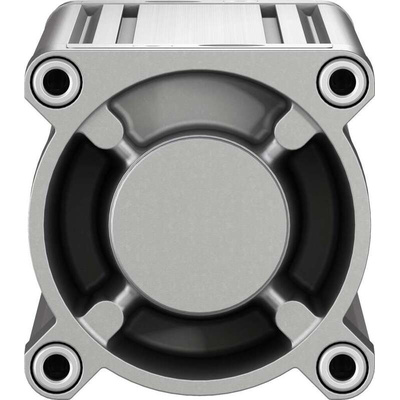

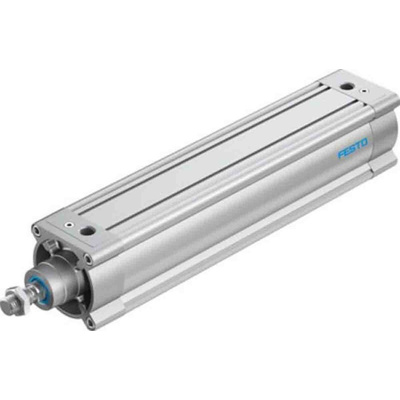

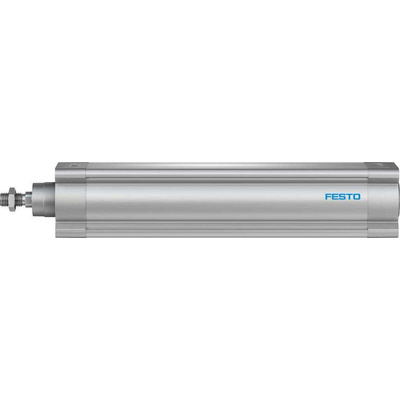

DSBC-100-400-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1384814, 100mm Bore, 400mm Stroke, DSBC Series, Double Acting

Festo Pneumatic Piston Rod Cylinder, 12 Bar Maximum Operating Pressure, 31mm Cushioning Length - DSBC-100-400-PPVA-N3

Get your system on the move with this pneumatic piston rod cylinder from Festo. It creates linear motion, so it's ideal for manufacturing operations that involve clamping, positioning or ejecting components. You can count on it to perform reliably in a wide range of industrial settings, as this heavy hitter has a 400mm stroke that generates a hefty 4.4 to 4.7N at 6 bar.

Features & Benefits

• TPE-U(PU) seals ensure an airtight unit for optimal performance
• G1/2 pneumatic connection for compatibility with standard systems
• High alloy steel piston rod and wrought aluminium alloy cylinder barrel ensure durability
• Wide operating temperature range of -20°C to +80°C for versatility

Applications

• Railway systems
• Medical equipment
• Automated manufacturing
• Packaging lines

What does the cushioning on this piston rod cylinder do?

Cushioning slows the speed of a piston before it reaches the end of the barrel. Without it, the piston could vibrate excessively, leading to misalignment and damage to the connected parts.

How do I maintain this pneumatic piston rod cylinder?

Lubricate the seals and piston rod to prevent unnecessary friction and reduce premature wear.

Datasheet - DSBC-100-400-PPVA-N3
