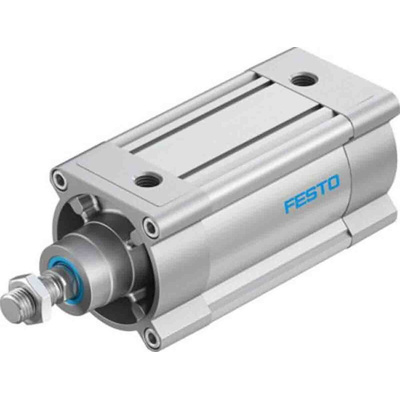

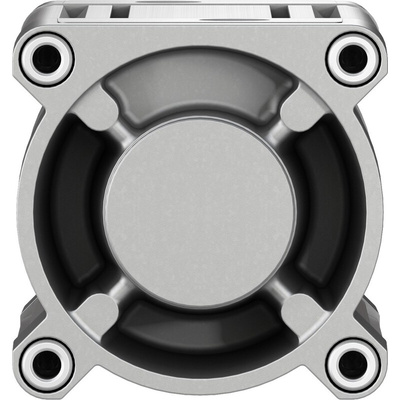

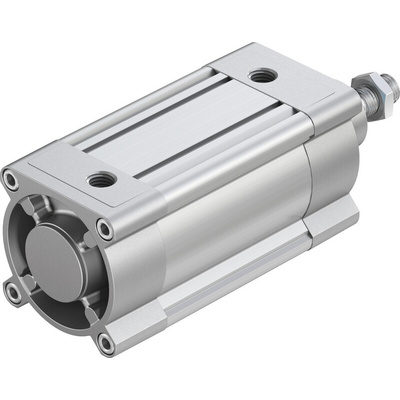

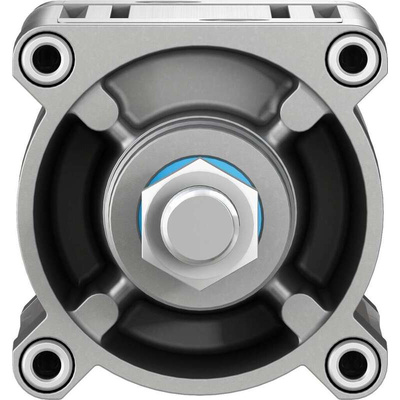

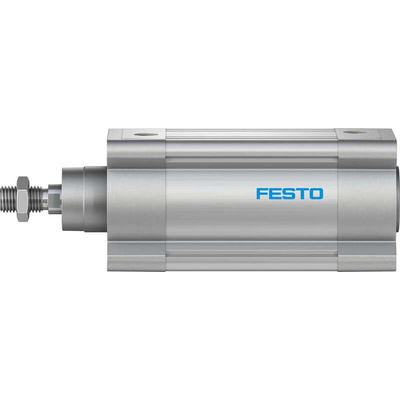

DSBC-100-100-PPSA-N3, Festo Pneumatic Piston Rod Cylinder - 1384894, 100mm Bore, 100mm Stroke, DSBC Series, Double Acting

Festo Pneumatic Piston Rod Cylinder, 10mm Piston Diameter, Male Piston-Rod End - DSBC Series - DSBC-100-100-PPSA-N3

Power up your productivity with this pneumatic piston rod cylinder from Festo. It's an essential bit of kit in automated systems as it repeatedly moves components in a straight line along a single axis. This is a double-acting device, meaning air is taken in at both ends, which drives the piston back and forth with consistent pressure. With a bore of 100mm, stroke of 100mm and theoretical return stroke force of 4,418N, it packs quite a punch from a small unit. A die-cast aluminium cover and wrought aluminium alloy cylinder make the valve lightweight and durable.

Features & Benefits

• Standard G1/2 pneumatic connection for wide compatibility
• Piston rod is made from high alloy steel for corrosion resistance
• Suitable for use in harsh industrial environments with ambient temperatures between -20°C and +80°C
• Can be mounted in any assembly position for versatile installation
• PPS cushioning helps protect your equipment against shocks

Applications

• Packaging plants
• Sorting lines
• FMCG manufacturing

What pressures can this pneumatic piston rod cylinder work under?

It has a wide operating pressure range between 0.4 and 12 bar, so you can rely on it for both low-pressure and high-pressure applications.
