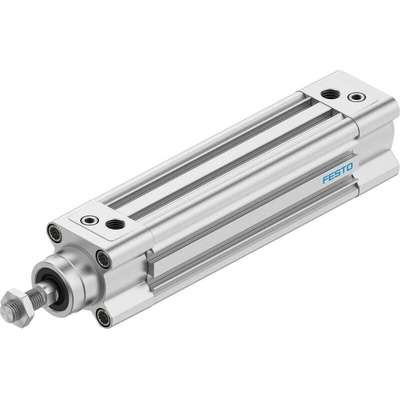

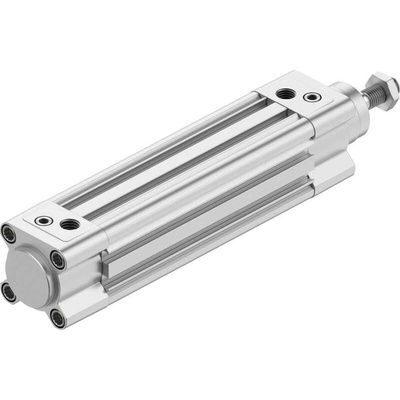

DSBC-32-100-D3-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 3656519, 32mm Bore, 100mm Stroke, DSBC Series, Double Acting

Festo Pneumatic Piston Rod Cylinder, 0.6 to 12 Bar Operating Pressure Range, G1/8 Pneumatic Connection - DSBC-32-100-D3-PPVA-N3

Need a way to eject, stop or arrange objects in a straight line? Choose this pneumatic piston rod cylinder from Festo and get precision control. It's a double-acting device, meaning its piston is driven in both directions by compressed air, giving you reliable repeatability. The robust high-alloy steel rod and aluminium barrel shrug off challenging conditions, assuring you of performance in temperatures between -20°C and +80°C. The unit features slots along its barrel that can hold a proximity sensor, so you can use it for jobs where accuracy is key.

Features & Benefits

• 100mm stroke is an easy fit in confined systems
• TPE-U(PU) seals keep the device airtight for on-point performance
• Both ends have adjustable cushioning that absorbs impacts to prolong the lifespan of the component

Applications

• Automotive industry
• Medical imaging applications
• Pharmaceutical manufacturing
• Agricultural equipment

Can I use this pneumatic piston rod cylinder in humid or damp conditions?

Yes, it has a die-cast aluminium barrel that won't rust, even in damp settings.

Can I use this device with lubricated air?

Yes, but note that if you use it with lubricated media once, you can't go back to non-lubricated air.

Datasheet - DSBC-32-100-D3-PPVA-N3
