MHA3-MS1H-3/2G-3, Festo 3/2 Closed, Monostable Solenoid Valve - Electrical MHA3 Series, 525135

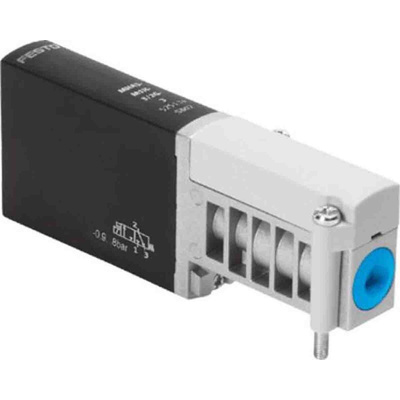

Festo 3/2 Closed Monostable Solenoid Valve, Electrical - MHA3 Series - MHA3-MS1H-3/2G-3

This fast-switching valve from Festo has a response time of 2 milliseconds. It's designed for controlling compressed air in high-speed automation systems. The unit's consistent accuracy improves mechanical processes and ensures steady, high-quality production. Its modular structure means you can retrofit the valve into existing systems or use it as a pacesetter for new pneumatic connections. This compact valve is also suitable for use with air ejectors and in flap control systems.

• Pressure relived poppet valve design structure
• Mechanical spring reset
• Operating pressure range of -0.9 to 8 bar
• Standard nominal flow rate of 200 l/min
• Maximum switching frequency of 28 Hz
• Nominal size of 3 mm
• Soft-sealing to prevent leaks
• Reversible flow direction
• Manifold mounting style

Range Information

• The fast-switching valves from Festo's MH range can be used directly in a variety of applications without additional protective measures
• The components' built-in electronics enable a constant dynamic response independent of temperature or supply voltage fluctuations
• HM units offer optimum efficiency with an extremely long service life of 500 million cycles and continuous three-shift operation with no need for maintenance

The Festo solenoid valve used individual valve and has fast switching which used pressure-relieved poppet valve of structure and used mechanical spring for reset. Its width size is 14 mm and used operating pressure up to -0.9 - 8 bar. Its standard nominal flow rate is 200 l/min. Its nominal size is 3mm and it is reversible.

Ambient temperature is -5°C to 40 °C
Zinc die-casting used for housing material
