JMFH-5/2-D-1-C, Festo 5/2 Bistable Solenoid Valve - Electrical G 1/8 JMFH Series, 150980

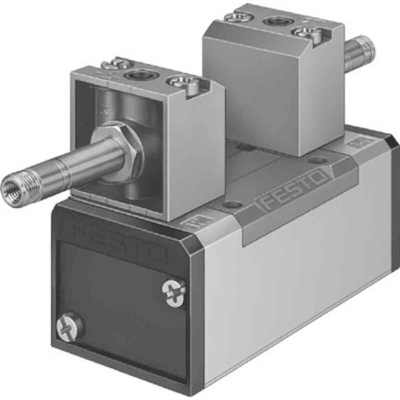

Festo 5/2 Bistable Solenoid Valve, G 1/8, Electrical Actuation - JMFH-5/2-D-1-C

Looking for a vibration-resistant and shock-resistant solution to controlling pneumatic flows? This bistable solenoid valve from Festo will do the job. It uses an electrical actuator to send single pulses to open and close a valve position, and you'll get a non-reversible flow direction with minimal energy consumption. The device has a piston slide and gate valve design and a sub-base mounting style, so you can be sure of secure installation.

• Standard G 1/8 connection port thread offers easy installation
• Five-port, two-position valve lets you adjust speed in both directions of a double-acting pneumatic actuator by controlling the flow rate with throttle valves
• IP65 (ingress protection) rating indicates a dust-tight construction and protection against jets of water

Applications

• Compressed-air applications
• Reverse osmosis systems
• Automatic irrigation systems

What's this device made from?

This solenoid valve's housing is made of die-cast aluminium, which provides highly conductive, corrosion-resistant protection for the coils and other components. The material also offers a positive weight-to-strength ratio, making this device is a convenient and efficient option for your pneumatic flow systems.

DataSheet - JMFH-5/2-D-1-C

Catalogue - JMFH-5/2-D-1-C
