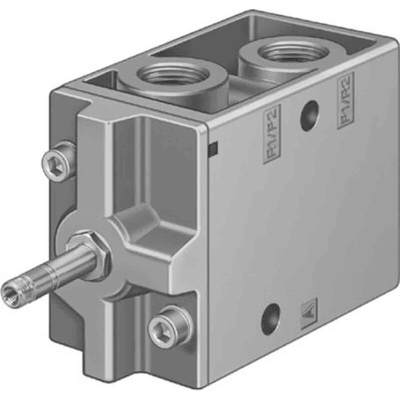

MFH-3-1/2-S, Festo 3/2 Closed, Monostable Solenoid Valve - Electrical G 1/2 MFH Series, 7960

Festo 3/2 Closed Monostable Solenoid Valve, Electrical, G 1/2 - MFH Series - MFH-3-1/2-S

This solenoid valve from Festo has a soft start to gradually build up pressure in pneumatic systems. An adjustable control valve allows only small amounts of air to flow into a compressed-air system as output pressure is built up. This lets downstream cylinders and working devices slowly move into position. Full pressure is only released when all of the components are in place. This improves operator safety and protects pneumatic systems from damage. You can manually stop this valve in the event of a technical fault.

• Connection port thread size of G 1/2
• Poppet seat design structure
• Mechanical spring reset
• Operating pressure range of -0.95 bar to 10 bar
• Standard nominal flow rate of 3700 L/min
• Nominal size of 14 mm
• Soft-sealing to prevent leaks
• Reversible flow direction
• Manifold mounting style
• Ambient temperature range of -5°C to +40°C
• IP65 rating (sealed against dust and moderate water jets)

Range Information

• The MFH series of on/off valves can be used with Festo service units for the preparation of compressed air
• These components have NBR (nitrile rubber) seals which are resistant to oil, water and hydraulic fluid as well as heat-ageing and abrasion
• The all-metal components are made from sturdy die-cast aluminium and won't rust

The Festo solenoid valve with manual override without solenoid coil or socket and solenoid coil and socket should be ordered separately. It has piston slide of structure and its width size is 52 mm and used operating pressure up to -0.95 - 10 ba. Its standard nominal flow rate is 3700 l/min.

Ambient temperature is -5°C to 40 °C
Aluminium die cast material used for housing material

DataSheet - MFH-3-1/2-SSheet -
