MHE4-MS1H-3/2G-QS-8, Festo 3/2 Closed, Monostable Solenoid Valve - Electrical MHE4 Series, 525191

Festo Solenoid Valve, 8 Bar Maximum Operating Pressure, Electrical Actuation - MHE4-MS1H-3/2G-QS-8

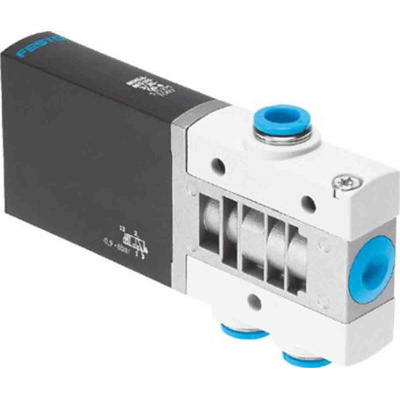

Control the flow of air in your pneumatic system using this solenoid valve from Festo. It has a 3/2 configuration, which means there are 3 connection ports and 2 positions that are electromagnetically directed, for a smooth switching process. The unit features NBR seals to prevent air leakage during use, so you can be sure of reliable operation. Thanks to a compact width of 18mm, this device is suitable for installation in applications where space is at a premium.

Features & Benefits

• Nominal flow rate of 400L/min makes it suitable for fast-paced applications
• Light weight of 270g, so it's easy to handle and won't put strain on a mounting surface
• Robust die-cast zinc housing resists rust and impact for long-lasting use in damp and challenging conditions

Applications

• Air-conditioning systems
• Dishwashers
• Sewage treatment plants

What's the operating pressure range of this device?

This valve has a broad operating pressure range between 0.9 and 8 bar, so it's a reliable option for both light-duty and medium-duty applications.

Can this unit handle extreme temperatures?

Yes, with a wide ambient temperature range from -5°C to +60°C, this valve functions safely in demanding conditions.
