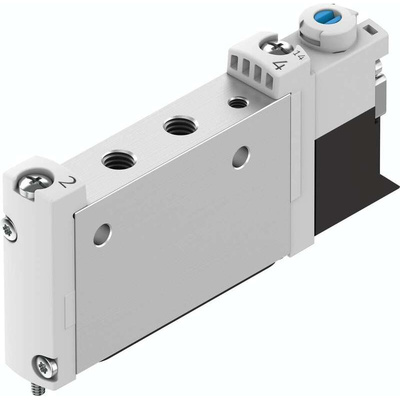

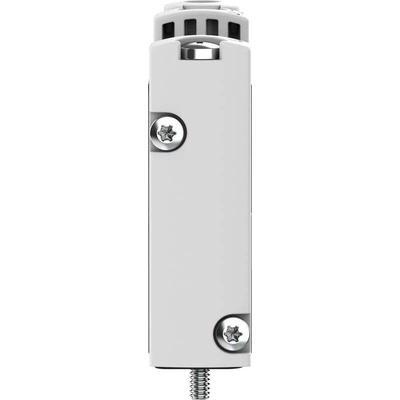

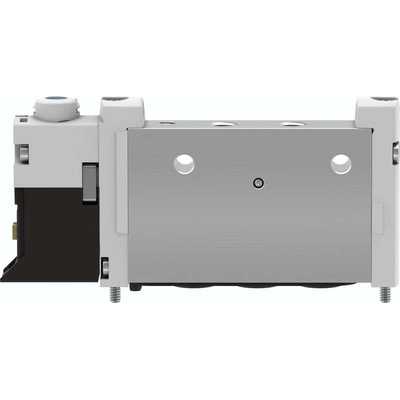

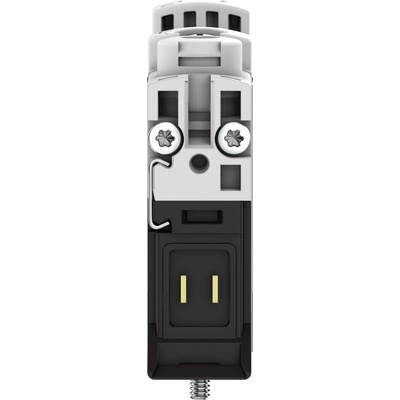

VUVG-L10-M52-MT-M5-1P3, Festo 5/2 Monostable Solenoid Valve - Electrical Metric M5 VUVG Series 24V dc, 574351

Festo Solenoid Valve, Internal Pilot Air Supply Type, Manifold Mounting - VUVG-L10-M52-MT-M5-1P3

Keep your industrial process ticking along smoothly with this monostable solenoid valve from Festo. It's a 5/2-way unit that lets you stop or start the airflow in your system by changing the position of its built-in plunger. Thanks to a wide operating temperature range between -5°C and +60°C, this is an ideal option for harsh work areas. You can mount it in any position, either on a rail or by using the through-hole method, to make installation a breeze. Tipping the scales at just 44g, this valve's a lightweight contender that won't strain your setup.

Features & Benefits

• Standard M5 thread on pneumatic ports means it's compatible with common connectors
• NBR seals resist chemical damage to prevent leakage
• Durable wrought-aluminium alloy housing supports a long service life
• Suitable for powerful pneumatic systems thanks to a high flow rate of 220L/min
• Broad operating pressure range of 3 to 8 bar means it's versatile

Applications

• Packaging industry
• Heavy engineering
• Medical equipment

Is this solenoid valve waterproof?

Yes. An IP65 rating on this product assures you it's resistant to low-pressure water jets from any direction, as well as being fully dust-protected.
