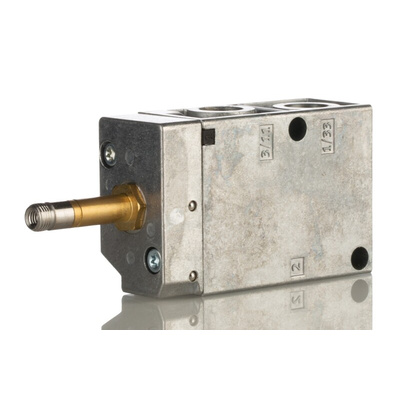

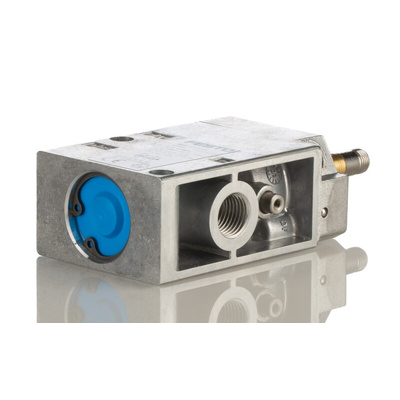

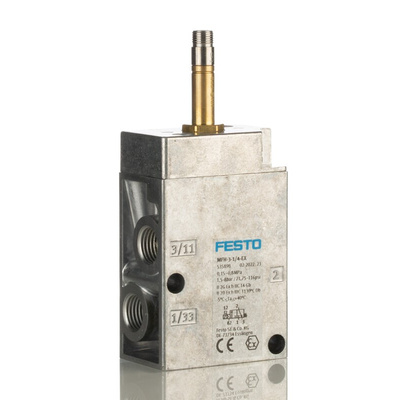

MFH-3-1/4-EX, Festo 3/2 Closed, Monostable Solenoid Valve - Electrical G 1/4 MFH Series, 535898

Festo Pneumatic Solenoid Valve, 3/2 Function, G1/4 Thread - MFH-3-1/4-EX

This solenoid valve from Festo efficiently directs the air needed to operate your pneumatic equipment. Its monostable 3/2 port design swaps the flow between its two outputs when energised for fast supply control, while a flow rate of 800L/min can handle the demands of lighter processes. The unit features a manual override, meaning you can open the ports without power for simple servicing. With support for DIN rail mounting, this valve slots easily into your system.

• Switching times between 10 and 29ms to maintain system efficiency
• Die-cast aluminium housing resists corrosion for a reliable airway
• IP65 rating means the device is dust-tight and resistant to low-pressure water jets, making it suitable for harsh conditions
• Wide operating pressure range between 1.5 and 8 bar for compatibility with many common pressurised settings

Applications

• Pneumatic equipment
• Processing plants
• Construction industry

With what kind of media can I use this solenoid valve?

This valve is recommended for use with compressed air. It supports lubricated operation but isn't suitable for liquid media.

Does this valve come with a solenoid coil?

No, this unit isn't supplied with a solenoid coil – these are sold separately (181-6469).

DataSheet - MFH-3-1/4-EX

Instruction Sheet - MFH-3-1/4-EX
