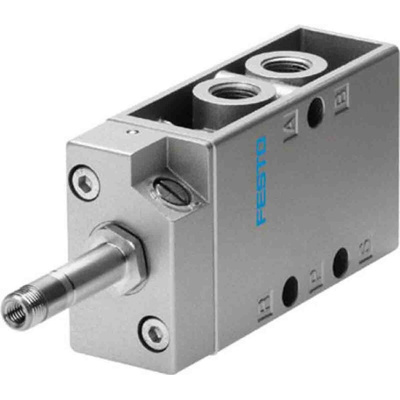

MFH-5-1/8-S, Festo 5/2 Monostable Solenoid Valve - Electrical G 1/8 MFH Series, 10348

Festo Solenoid Valve, 26mm Width, 10 Bar Maximum Operating Pressure - MFH-5-1/8-S

Use this solenoid valve from Festo to regulate the flow of fluid in your industrial pneumatic system. It's an easy-to-use monostable device that's actuated when the current is on and returns to its resting position when the current's turned off. The die-cast aluminium housing resists corrosion and impact, so you can rely on it for long-term use in challenging conditions. Nitrile rubber seals prevent air leakage to support steady pressure in your equipment for optimal performance. For easy and flexible installation, you can mount this valve on a manifold rail or using the through-holes in its body.

Features & Benefits

• Broad operating pressure range between 0 and 10 bar suits low-pressure and medium-pressure applications
• Wide operating temperature range between -5°C and +40°C for use in demanding environments

Applications

• Medical and dental equipment
• Food and beverage industry
• Air compressors

What does the 5/2 way function of this valve mean?

The 5/2 way function indicates that this is a five-way, two-position valve with 5 ports and 2 switching positions. This makes it ideal for controlling a double-action cylinder that uses pressurised air to push its piston from end to end.

DataSheet - MFH-3-1/8-S

Catalogue - Solenoid/Pneumatic Valves
