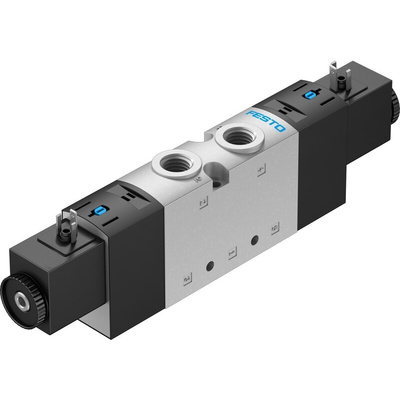

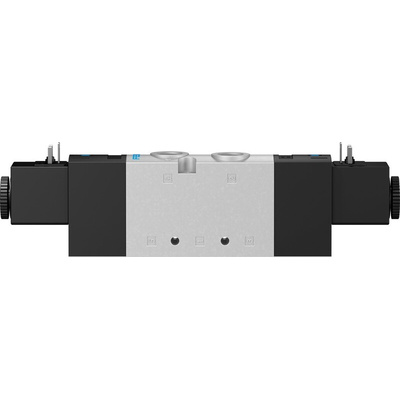

VUVS-L25-P53E-MD-G14-F8-1C1, Festo 5/3 Closed Solenoid Valve - Electrical G 1/4 VUVS Series 24V dc, 575539

Festo Solenoid Valve, Mechanical Spring Reset, 3.3W Power Consumption - VUVS-L25-P53E-MD-G14-F8-1C1

Automate airflow direction in your pneumatic systems with this solenoid valve from Festo. It has a coil that generates a magnetic field to open and close ports when it receives a signal. This changes the flow path to control single-acting cylinders. Thanks to its spring reset mechanism, the unit automatically goes back to its default state when the cylinder's piston retracts, so it's ready for the next command. The unit's painted die-cast aluminium housing handles impact and fends off rust without breaking a sweat, making it fit for use in harsh environments.

Features & Benefits

• Light weight of 430g is easy to handle during installation and puts minimal strain on your equipment
• Manifold rail and through-hole mounting options to suit your design needs
• NBR and HNBR seals block out dust and contaminants to ensure optimal performance
• Supports lubricated operation for smooth running of its moving parts

Applications

• Research laboratories
• Assembly lines
• Material handling equipment

Is this solenoid valve water-resistant?

Yes, its IP65 rating tells you that it's dustproof and withstands low-pressure water jets.

DataSheet - VUVS-L25-P53E-MD-G14-F8-1C1

Catalogue - Automation Technology
