VUVS-L25-P53C-MD-G14-F8-1B2, Festo 5/3 Closed Solenoid Valve - Electrical G 1/4 VUVS Series, 575527

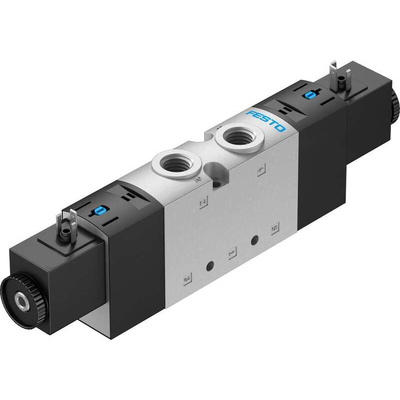

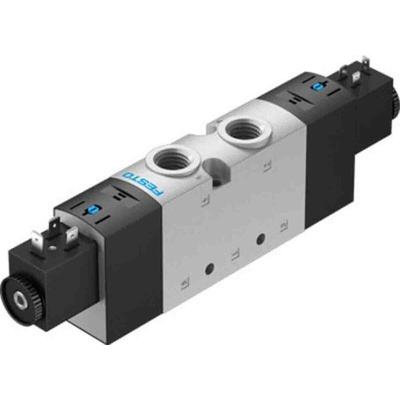

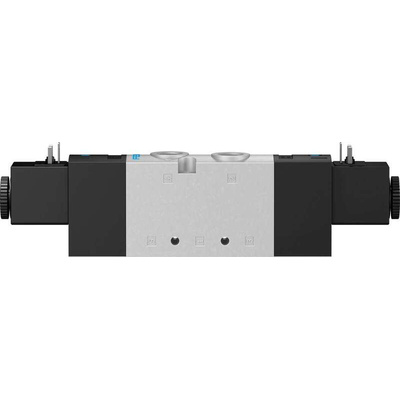

Festo Solenoid Valve, Manifold Mount, G1/4 Thread - VUVS-L25-P53C-MD-G14-F8-1B2

Manage and direct the airflow in your pneumatic equipment using this solenoid valve from Festo. Its body is made of durable die-cast aluminium for resistance to corrosion and impact, so you can use it in harsh industrial conditions. With a maximum operating pressure of 10 bar, it's ideally suited for installation in low-duty and medium-duty applications. The device has a light weight of 430g which means it puts minimal strain on your machinery. Thanks to a G1/4 thread size and a compact valve size of 26.5mm, it fits neatly in restricted enclosures.

Features & Benefits

• Wide operating temperature range of -10°C to +60°C for use in challenging environments
• 13ms switching-on time to boost productivity
• IP66 rating means it's fully protected against dust and high-pressure water jets, so safe to use in contaminated settings
• NBR seals prevent air leakage and limit external contamination for long-lasting use

Applications

• Food and beverage production plants
• Oil and gas industry

How do I mount this valve?

To achieve a secure and vibration-proof attachment to compatible equipment, you can mount this unit on a manifold rail or through the holes on its body.
