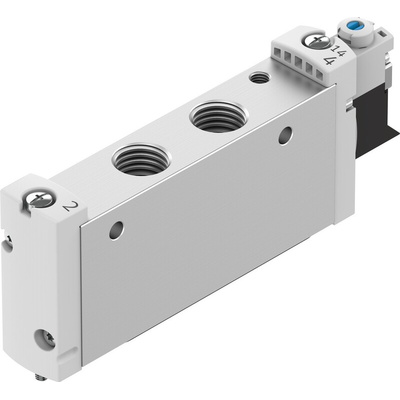

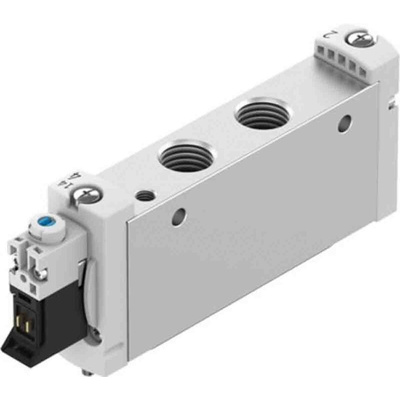

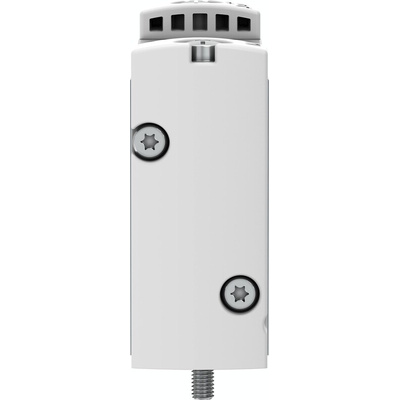

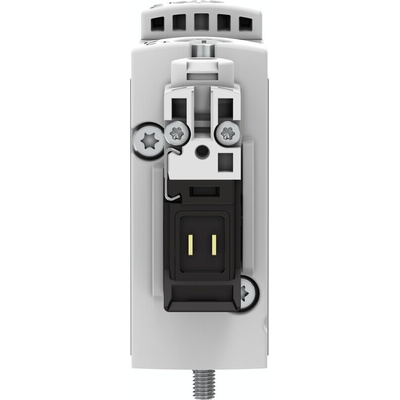

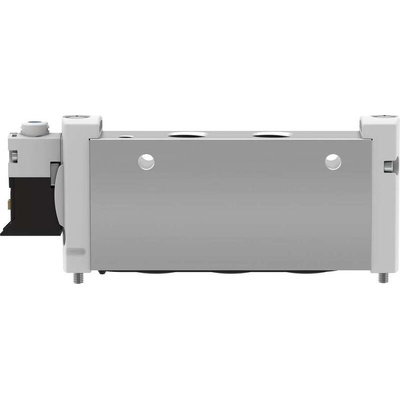

VUVG-L18-M52-RT-G14-1P3, Festo 5/2 Monostable Solenoid Valve - Electrical G 1/4 VUVG Series 24V dc, 574428

Festo Electrically Actuated Monostable Solenoid Valve, 2.5 to 8 Bar, G1/4 Connection Port - VUVG-L18-M52-RT-G14-1P3

This electrically actuated solenoid valve from Festo is an effective directional control valve for a double-acting actuator. It has five ports and two positions, so it can send compressed air to a device and exhaust it at the same time. Robust aluminium-alloy housing withstands wear and tear, while nitrile rubber seals resist abrasion and need minimal maintenance. These seals are also suitable to use in humid and contaminated environments. This solenoid valve has a wide operating pressure range of 2.5 to 8 bar, making it a versatile option for industrial use.

• High nominal flow rate of 1,300L/min for efficient performance in a pneumatic system
• Throttleable exhaust function can be controlled to meet your pressure requirements
• Resistant to shock and vibration for long life in harsh operating conditions
• IP40 (ingress protection) rated enclosure is protected against tools and small wires larger than 1mm

Applications

• Mining and minerals processing
• Chemical industry
• Industrial pumps
• Medical industry

Does this solenoid valve have a manual override function?

Yes, this solenoid valve comes with manual override. This makes it safe and convenient to use during commissioning, testing and maintenance.

DataSheet - VUVG-L18-M52-RT-G14-1P3

Brochure - Solenoid Valves VG Series

Catalogue - Solenoid Valves VUVG/Valve Manifold Assembly VTUG-S
