VUVG-L18-P53C-T-G14-1P3, Festo 5/3 Closed Solenoid Valve - Electrical G 1/4 VUVG Series, 574431

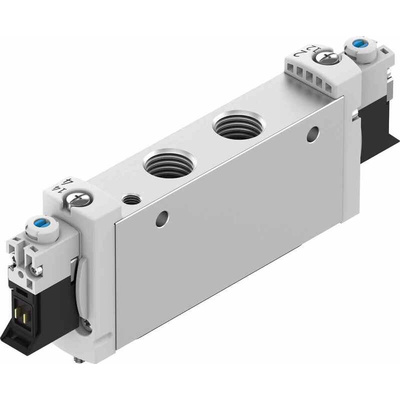

Festo 5/3 Closed Solenoid Valve, Electrical, G 1/4 - VUVG Series - VUVG-L18-P53C-T-G14-1P3

This compact 5/3 closed solenoid valve from Festo controls the flow of compressed air in your pneumatic system. It has a high flow rate of 1000 to 1380 L/min and offers a fast, reliable actuator response. Use this valve in a range of applications with operating pressures ranging from 3 to 8 bar.
A wrought-aluminium alloy housing provides protection from corrosion and an IP (ingress protection) 65 rating means the unit is dust-tight and sealed against low-pressure water jets from any angle. The seals are made from nitrile butadiene rubber (NBR) and hydrogenated NBR (HNBR), so they're hard-wearing, resistant to oil and chemicals and have high tensile strength.

• Electrical actuation makes it easy to control the flow of liquid or gas
• G 1/4 connection port thread size compatible with industry-standard fittings
• Throttleable exhaust air function so you can use it as an exhaust port or a safety valve
• Soft-sealing principle prevents leakage

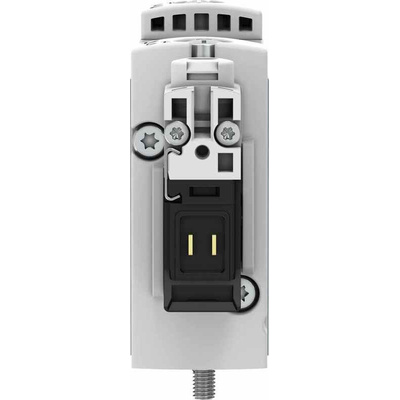

• Plug socket rated IP (ingress protection) 40, so is sealed against objects greater than 1 mm

DataSheet - VUVG-L18-P53C-T-G14-1P3

Solenoid Valves VUVG/Valve Terminals VTUG
