VUVG-L14-B52-T-G18-1P3, Festo 5/2 Bistable Solenoid Valve - Electrical G 1/8 VUVG Series, 566500

Festo 5/2 Bistable Solenoid Valve, Electrical, G 1/8 - VUVG Series - VUVG-L14-B52-T-G18-1P3

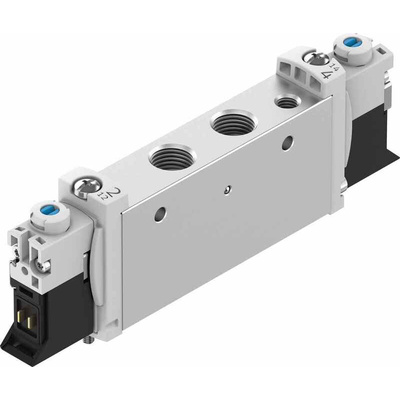

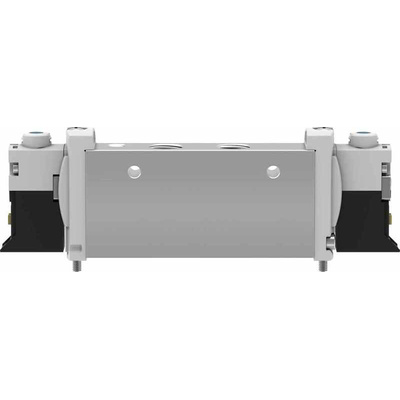

This solenoid valve from Festo offers high flow rates in a compact package. It's soft-sealing so it won't leak and it's made from wrought aluminium alloy to ensure a long service life. The valve features electrical actuation for fast response times and uses an innovative I-Port interface that reduces energy consumption. There are three options for manual override, including detenting and non-detenting, to simplify set-up and testing. The five-port, two-way bistable valve is rated IP65 with the plug socket on, so it can withstand harsh industrial settings.

• Electrical actuation type
• G 1/8 port thread size
• 5/2 bistable valve type
• Standard nominal flow rate of 700 to 780 l/min
• Operating pressure of 1.5 to 8 bar
• Ambient temperature of -5°C to +60°C
• Lubricated operation possible

Range Information

• The Festo VUVG series offers reliable and accurate flow rates, while taking up minimal space
• The valves and manifolds are made from sturdy and reliable metal components for enhanced durability
• Flexible design ensures a wide range of valve functions
• Trouble-shooting and servicing are fast and simple, thanks to the 360° LED display and easily replaceable valves

The Festo solenoid valve is small, compact and have high flow rate. It has piston slide of structure and used mechanical spring for reset. Its valve size is 14 mm and used operating pressure up to 1.5 - 8 bar.

Ambient temperature is -5 °C to 60 °C
Aluminium alloy used for housing material
