VUVG-L14-P53C-T-G18-1P3, Festo 5/3 Closed Solenoid Valve - Electrical G 1/8 VUVG Series, 566501

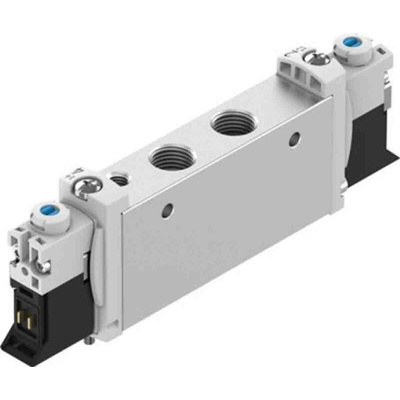

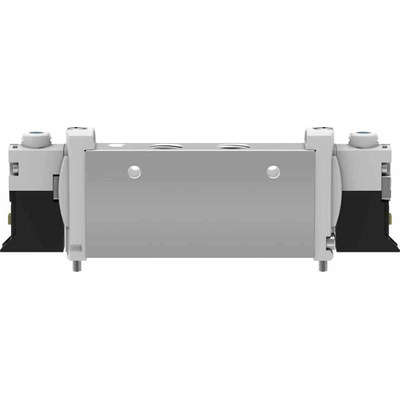

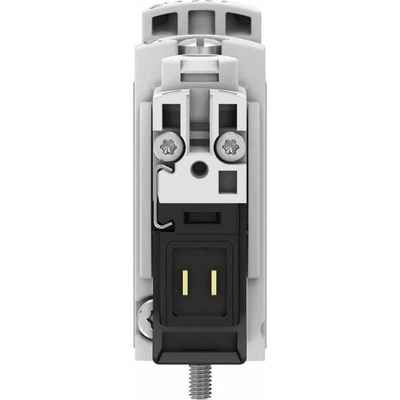

Festo 5/3 Closed Solenoid Valve, Electrical, G 1/8 - VUVG Series - VUVG-L14-P53C-T-G18-1P3

For high flow rates and fast response times in a compact package, choose this solenoid valve from Festo. It's soft-sealing to prevent leaks and its wrought-aluminium alloy material makes it a durable choice. The innovative I-Port interface is optimised for reduced energy consumption. Thanks to a piston-spool design, this valve keeps response times stable and is suitable for a wide range of functions. The five-port, three-way closed valve is IP65 rated with the plug socket on, so it's sealed against dust particles and moderate water jets.

• Electrical actuation type
• G 1/8 port thread size
• 5/3 closed valve type
• Standard nominal flow rate of 620 L/min to 650 L/min
• Operating pressure range of 3 to 8 bar
• Ambient temperature range of -5°C to +60°C
• Lubricated operation possible

Range Information

• The Festo VUVG series includes compact components delivering reliable and accurate flow rates
• The durable valves and manifolds are made from sturdy and reliable metal components
• Innovative E-box design makes it easy to change connections
• Valves include identification holders for labelling, making installation simple and secure
• 360° LED display and easily replaceable valves simplify monitoring and servicing

The Festo solenoid valve is small, compact and have high flow rate. It has piston slide of structure and used mechanical spring for reset. Its valve size is 14 mm and used operating pressure up to 3 - 8 bar. Its standard nominal flow rate is 620 - 650 l/min.

Ambient temperature is -5 °C to 60 °C
Aluminium alloy used for housing material

DataSheet - VUVG-L14-P53C-T-G18-1P3

Brochure - VUVG-L14-P53C-T-G18-1P3

Catalogue - VUVG-L14-P53C-T-G18-1P3

Instruction Sheet - VUVG-L14-P53C-T-G18-1P3
