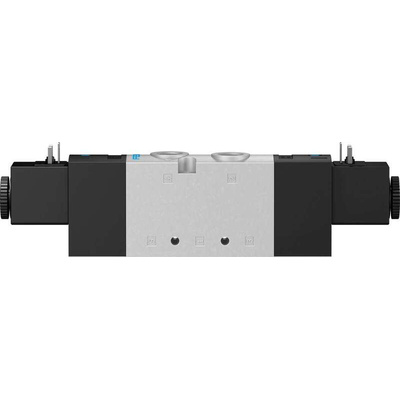

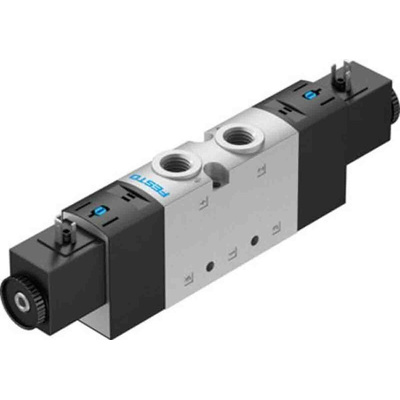

VUVS-L25-B52-D-G14-F8-1C1, Festo 5/2 Bistable Solenoid Valve - Electrical G 1/4 VUVS Series 24V dc, 575518

Festo Solenoid Valve, 1300L/min Flow Rate, 1.5 to 10 Bar Operating Pressure Range - VUVS-L25-B52-D-G14-F8-1C1

Help your equipment breeze through industrial processes with this solenoid valve from Festo. When supplied with a voltage, its coil generates a magnetic field that moves the plunger to one of two positions. This automatically changes the direction of air movement in your system, taking the pressure out of flow control. Thanks to its high flow rate of 1300L/min, it packs a punch in heavy-duty pneumatic systems. A wide operating pressure range of 1.5 to 10 bar means you can count on the valve in your low-pressure applications.

Features & Benefits

• IP65 rating means it's fully protected against dust and low-pressure water jets
• Wide operating temperature range between -10°C and +60°C for use in challenging environments
• NBR seals are resistant to wear and corrosion to prevent leaks
• Light weight of 428g puts minimal strain on your system

Applications

• HVAC systems
• Medical and dental equipment
• Compressed air tools

What type of connectors does this unit use?

This unit has five G1/4 pneumatic connections and two M5-sized pilot exhaust ports for easy compatibility with standard equipment.

DataSheet - VUVS-L25-B52-D-G14-F8-1C1

Brochure - Valve Terminals

Manual - VUVS-L25-B52-D-G14-F8-1C1

2021499_Catalogue
