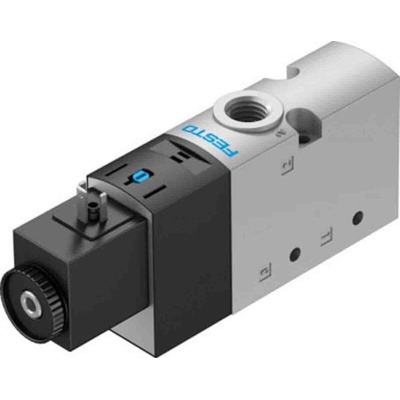

VUVS-L25-M32C-MD-G14-F8-1C1, Festo 3/2 Closed, Monostable Solenoid Valve - Electrical G 1/4 VUVS Series, 575477

Festo Pneumatic Solenoid Valve, 3/2 Function, G1/4 Thread - VUVS-L25-M32C-MD-G14-F8-1C1

This solenoid valve from Festo gives you close control over the airflow in your pneumatic system. The normally closed configuration stops the movement of air until the valve is energised, minimising the risk of wastage. A standard flow rate of 1,000L/min makes this a powerful option for directing intense air supplies. The unit achieves fast switching times between 11 and 40ms to keep your processes working efficiently.

• Operates at pressures between 2.5 to 10 bar, ensuring high compatibility with common pressurised tasks
• Mounts directly on a manifold block for a hassle-free installation
• Features an IP65 rating to indicate total protection against dust and weak water jets
• Corrosion-resistant die-cast aluminium housing keeps airways clear to maintain efficient air supplies

Applications

• Heating, ventilation and air-conditioning systems
• Vacuum-based packing
• Agricultural equipment

What sealing material does this solenoid valve use?

This valve features an NBR seal, which ensures a long-lasting airtight fit.

Does this valve come with a solenoid coil?

Yes. The device comes supplied with a 24V DC solenoid coil, which is ideal for common electrical supplies.

DataSheet - VUVS-L25-M32C-MD-G14-F8-1C1
