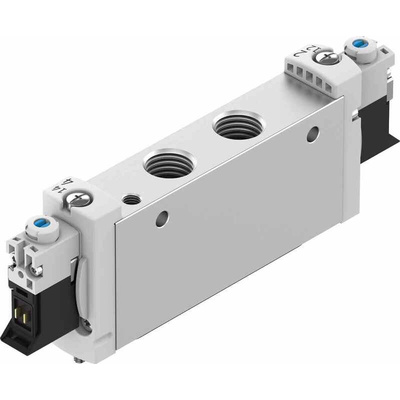

VUVG-L18-B52-T-G14-1P3, Festo 5/2 Bistable Solenoid Valve - Electrical G 1/4 VUVG Series, 574430

Festo Double-Acting Solenoid Valve, 5/2 Valve Function, G 1/4 Thread - VUVG Series - VUVG-L18-B52-T-G14-1P3

This bistable solenoid valve from the Festo has a double-acting mechanism that ensures the valve remains in its new position after actuation. To return it to the original position, apply an electric current to actuate the solenoid coil again. You can set it up by connecting it to an electrical plate to control the movement of the valve. The unit features an internal pilot air system allowing for smooth valve operation via compressed air. Its wrought-aluminium cover provides protection against deterioration from rust. Install this solenoid valve to regulate the on/off mechanism in tanks and cylinders.

• Compact size of 7.3mm makes it suitable for small pneumatic set-ups
• Wide operating pressure range of 1.5 to 8 bar for a variety of applications
• Standard G 1/4 threaded connection makes it compatible with common fixtures
• 5/2 port configuration for versatile setup options

Application Information

• Industrial cylinders
• Automotive applications
• Air compressors

Can I operate this bistable solenoid valve manually?

This solenoid valve has a manual override function. You can interrupt the automated operation or control it manually via pushing the detent to release pressure. This is ideal for emergency conditions.

DataSheet - VUVG-L18-B52-T-G14-1P3

Brochure - Order guide for standalone valves

Declaration of Conformity - Solenoid valve

Instruction Sheet - VUVG series
