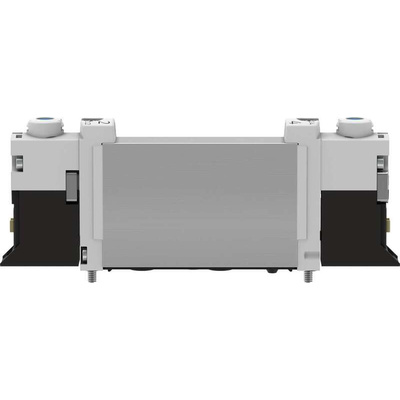

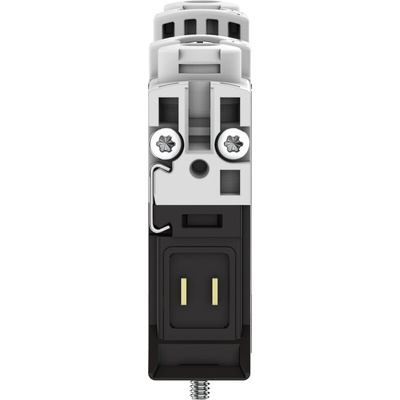

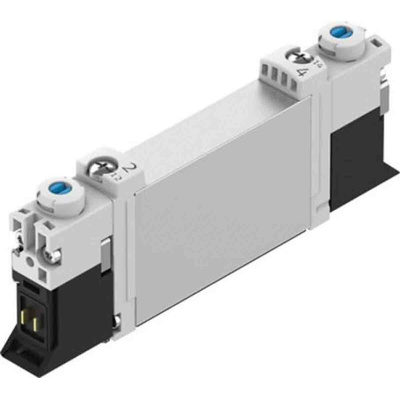

VUVG-B10-T32C-AZT-F-1P3, Festo 2x3/2 Closed, Monostable Solenoid Valve - Electrical VUVG Series, 566487

Festo Monostable Solenoid Valve, 1.5 to 10 Bar, 150 to 170L/min Flow Rate - VUVG-B10-T32C-AZT-F-1P3

This monostable solenoid valve from Festo controls and directs the flow of air, liquid and gases in your pneumatic system. It offers a high flow rate of 150 to 170L/min to enhance productivity. Quality soft seals made from nitrile butadiene rubber (NBR) and hydrogenated NBR prevent leaks for improved performance. Thanks to a switch-on time of 6ms and a switch-off time of 16ms, you can be sure of fast responses and minimal downtime.

• Light weight of 55g to minimise strain on equipment
• Operating temperature range of -5°C to +60°C for use in demanding environments
• 1.5 to 10 bar operating pressure range for compatibility with low-pressure and high-pressure applications

Applications

• Packaging and assembly conveyor systems
• Medical and dental equipment
• Automotive applications

Can I use this valve in damp or humid environments?

The valve's housing is made from wrought aluminium alloy for resistance to corrosion in damp environments. It also has an IP65 (ingress protection) rating when used with a plug socket, meaning it's dust-tight and protected against low-pressure water jets. This makes it a good choice for use in areas exposed to moisture.

DataSheet - VUVG-B10-T32C-AZT-F-1P3

Catalogue - Solenoid Valves VUVG/Valve Manifold Assembly VTUG-S
