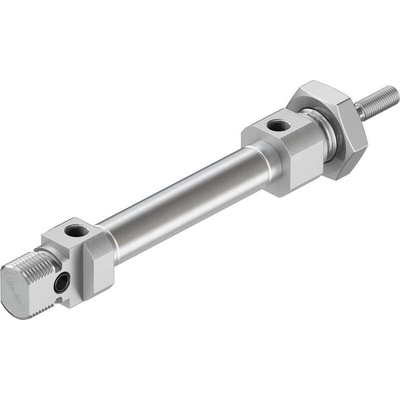

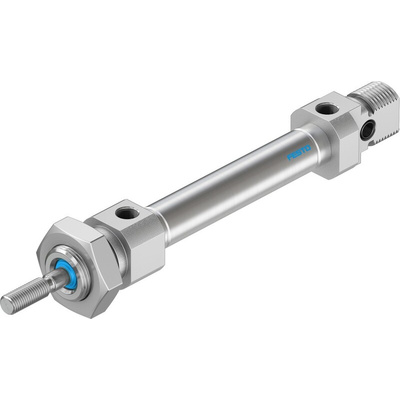

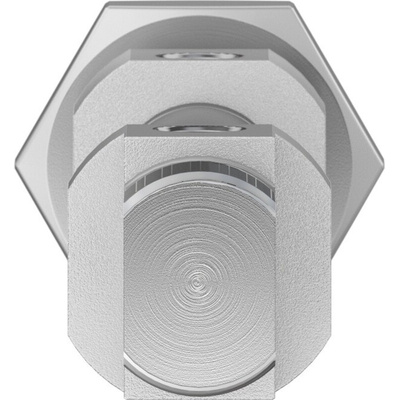

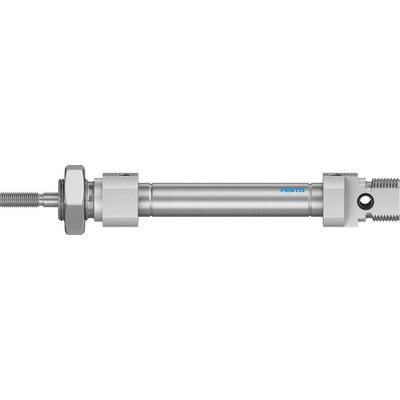

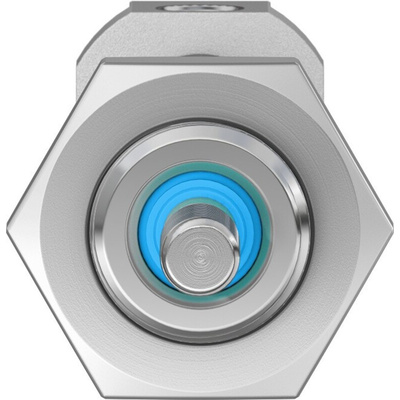

DSNU-8-25-P-A, Festo Pneumatic Piston Rod Cylinder - 19178, 8mm Bore, 25mm Stroke, DSNU Series, Double Acting

Festo Pneumatic Piston Rod Cylinder, High-Alloy Steel Piston Rod and Barrel, 1.5 to 10 Bar Operating Pressure - DSNU-8-25-P-A

Keep your pneumatic system on point with this piston rod cylinder from Festo. With a short stroke of 25mm, it's just what you need for the exact positioning or clamping of small components such as miniature nuts and bolts. As the unit is double-acting, it uses pressurised air to move in both forward and backwards directions. This gives you precise control over movement for spot-on accuracy in positioning tasks. Cushioning plates transform your industrial robots into smooth operators, as there's less chance of jerking and vibration. For convenience, this sensor's cushioning self-adjusts to load and speed changes, which minimises the need for manual intervention.

Features & Benefits

• Can be assembled in any position for convenience
• Robust wrought aluminium alloy housing makes it compatible with harsh and humid operating conditions
• Modular design offers easy integration into your pneumatic system

Applications

• Marine industry
• Factory automation
• Pharmaceutical manufacturing

What's the operating pressure range of this piston rod cylinder?

This cylinder has a broad operating pressure range between 1.5 and 10 bar, so you can trust it to handle most standard pneumatic setups.
