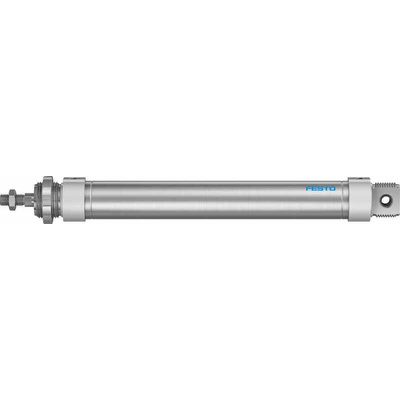

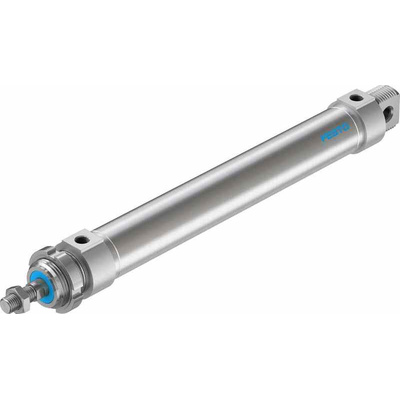

DSNU-32-200-PPV-A, Festo Pneumatic Roundline Cylinder - 196027, 32mm Bore, 200mm Stroke, DSNU Series, Double Acting

Festo Pneumatic Roundline Cylinder, 32 mm Bore, 200 mm Stroke, Double-Acting - DSNU Series - DSNU-32-200-PPV-A

Choose this roundline cylinder from Festo to perform rectilinear movements in your factory setup. It's a powerful unit for intensive production settings, designed to handle medium to high loads at fast speeds. Adjustable end-position cushioning lets you optimise the cylinder for applications with very high energy absorption, such as where a high load and high speed are combined. Thanks to its stainless-steel piston rod, the unit delivers superior performance and is highly durable.

• Magnetic piston for position sensing
• Powerful unit that's suitable for high-impact energy systems
• Supplied with both male and female threads for flexible mounting options and versatility in modular systems

Application Information

• Packaging applications
• Factory automation
• Manufacturing systems

Is this cylinder ISO-compliant?

Yes, this unit conforms to the ISO (International Standards Organisation) 6432 standard for pneumatic fluid power of single rod cylinders.

Is this cylinder corrosion-resistant?

This cylinder is rated as corrosion class 2 according to Festo standards. It's moderately corrosion resistant and can handle common industrial liquids such as grease and cleaning chemicals.

Datasheet - DSNU-32-200-PPV-A

Catalogue

InstructionSheet - 2021742
