DSNU-25-400-PPV-A, Festo Pneumatic Roundline Cylinder - 35193, 25mm Bore, 400mm Stroke, DSNU Series, Double Acting

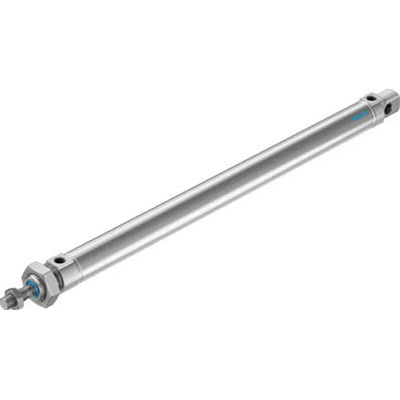

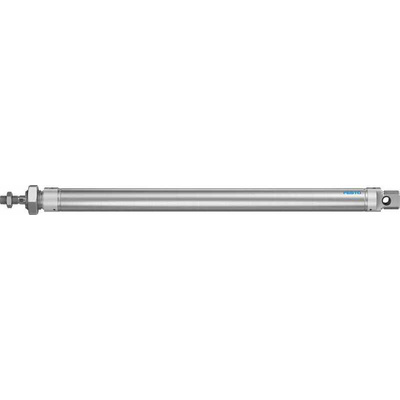

Festo Pneumatic Roundline Cylinder, Double Acting - DSNU Series - DSNU-25-400-PPV-A

This Festo pneumatic roundline cylinder is used for proximity sensing. It's suitable for applications in industrial and manufacturing processes, such as clamping and positioning. It's a double-acting cylinder that produces linear motion by forcing air in and out through two separate ports to move its piston. Pneumatic cushioning is adjustable at both ends. Its compact size makes it suitable for use in confined spaces. With a barrel constructed from durable high-alloy steel and hard-wearing nitrile rubber seals, this product can withstand a range of environmental stresses.

• Stroke size of 400 mm
• Double bore of 25 mm
• Male piston rod
• G 1/8 pneumatic connection
• Theoretical force at 6 bar (return stroke) of 247.4 N
• Theoretical force at 6 bar (advance stroke) of 294.5 N
• Moving mass with 0 mm stroke of 71 g
• Maximum operating pressure of 10 bar
• Minimum operating temperature of -20˚C
• Maximum operating temperature of +80˚C
• Test weight of 238 g

Range Information

• The DSNU series features a range of round cylinders
• Cylinders include durable stainless steel piston rods
• All caps are roller burnished onto the barrel for a high-quality surface finish

The Festo standards-based cylinder used for proximity sensing with pneumatic cushioning which adjustable at both ends. It has a various mounting option with or without additional mounting component. Its piston rod thread is M10x1.25 and stroke size is 400

Ambient temperature is -20°C to 80 °C
High alloy steel material used for cylinder barrel
