ESNU-12-10-P-A, Festo ISO Standard Cylinder - 19260, 12mm Bore, 10mm Stroke, ESNU Series, Single Acting, Пневмоцилиндр

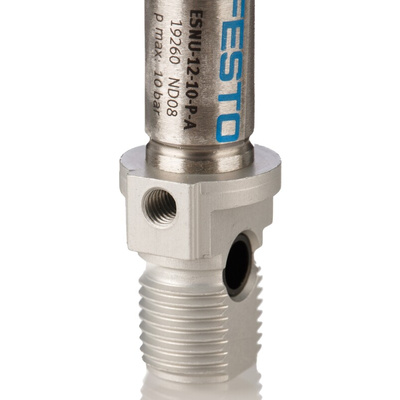

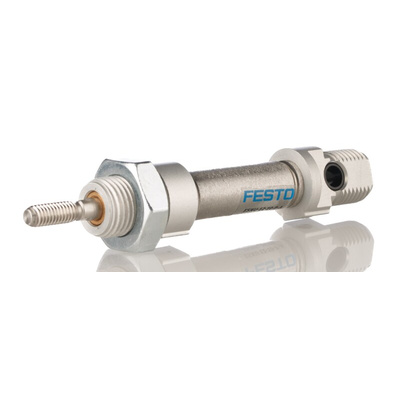

Festo Pneumatic Roundline Cylinder, 12mm Bore, 10mm Stroke - ESNU-12-10-P-A

This pneumatic cylinder from Festo is used for automated material-pushing functions in industrial environments. It's a single-acting cylinder, which means that its piston is pushed by air pressure and retracts with the help of an inbuilt spring. This makes it simple to operate and easy to maintain. To allow it to function without supervision and to maximise performance, it can be connected to a proximity sensor that controls and automates its operation. A high-alloy steel cylinder barrel provides superior strength and reliable corrosion resistance.

• Flexible cushioning at both ends to reduce noise and vibration
• Broad temperature range of -20°C to +80°C for use in extreme conditions
• Extend force of 61N (newtons) at 6 bar pressure for heavy-duty applications
• Nitrile butadiene rubber (NBR) sealing to prevent air leakages for optimal performance

Applications

• Process and packaging industries
• Construction
• Pharmaceutical production facilities

What safety mechanism does this cylinder have?

This component is a single-acting cylinder and its piston always returns to its original position via its spring after extending. This means that even when the air supply is cut, it will still return to its original position and not pose a risk to the equipment.

Datasheet - ESNU-12-10-P-A

Catalogue - Round Cylinders ESNU

Instruction Sheet - ESNU-12-10-P-A
