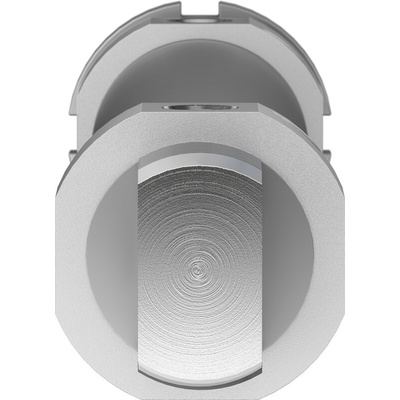

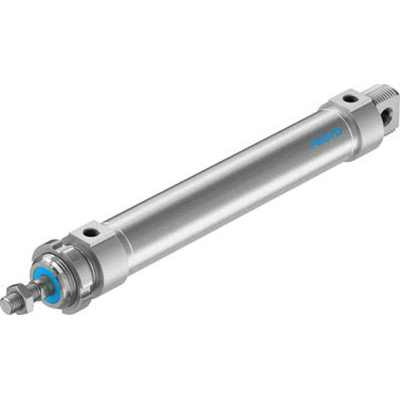

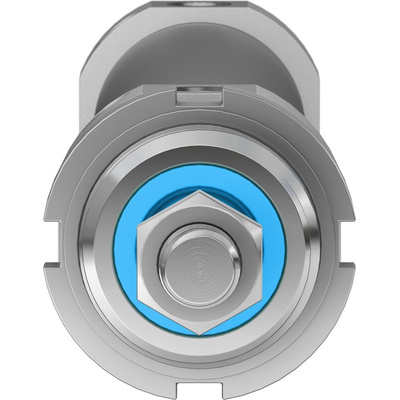

DSNU-32-160-PPV-A, Festo Pneumatic Piston Rod Cylinder - 196026, 32mm Bore, 160mm Stroke, DSNU Series, Double Acting

Festo Pneumatic Piston Rod Cylinder, 1 to 10 Bar Operating Pressure, 14mm Cushioning Length - DSNU-32-160-PPV-A

Choose this Festo pneumatic piston rod cylinder for your position-sensing operations. It delivers repeated linear motions to clamp, lift or move objects, while adjustable cushioning lets you regulate damping to suit your application. The double-acting unit applies pressure in two directions for greater control over movements. It's suitable for heavy-duty machinery, thanks to an extended stroke length of 160mm. NBR and TPE-U seals ensure an airtight system and energy-efficient performance, and its tough high-alloy steel piston rod and barrel resist corrosion for improved durability.

Features & Benefits

• Lightweight product at 619g adds minimal strain to your setup
• Wide operating temperature range between -20°C and +80°C for use in challenging conditions

Applications

• Automated assembly lines
• Transport industry
• Elevated work platforms
• Automatic doors

What's the benefit of double-ended cushioning in a pneumatic piston rod cylinder?

Double-ended cushioning reduces rod speed at both ends of the barrel to minimise impact and extend the service life of the component.

When should I use a double-acting pneumatic piston rod cylinder?

It's best to use a double-acting cylinder when a machine needs to perform more than one movement.

Datasheet - DSNU-32-160-PPV-A

Catalogue - Round Cylinders DSNU

Instruction Sheet - DSNU
