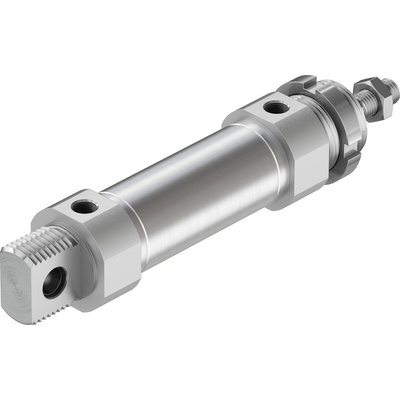

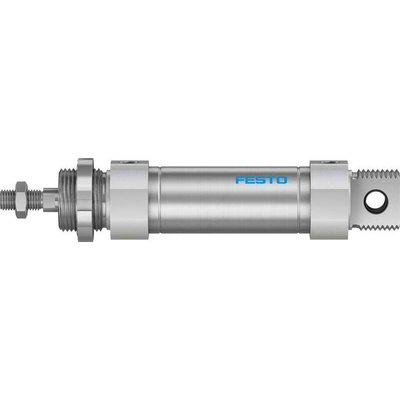

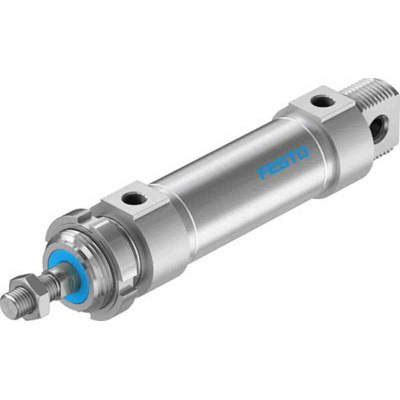

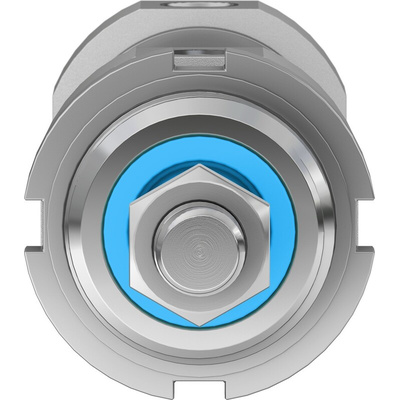

DSNU-32-50-P-A, Festo Pneumatic Piston Rod Cylinder - 195982, 32mm Bore, 50mm Stroke, DSNU Series, Double Acting

Festo Pneumatic Piston Rod Cylinder, 1 to 10 Bar Operating Pressure, G1/8 Connections - DSNU-32-50-P-A

Install this pneumatic piston rod cylinder from Festo for reliable automated functions such as clamping and positioning. It's a double-acting unit, so gives you precise control over bi-directional linear movements. You can adjust the flexible cushioning ring to regulate damping in line with the needs of your application. Various mounting options, with or without accessories, let you customise your setup for optimal performance. NBR and TPE-U(PU) seals create an airtight and energy-efficient system, while a wrought aluminium alloy cover improves structural strength to deliver an extended service life.

Features & Benefits

• Stroke length of 50mm to support demanding applications
• High alloy steel barrel and piston rod to withstand corrosion
• Lightweight product of 448g puts minimal strain on the mounting surface
• Wide operating temperature range between -20°C and +80°C for use in challenging conditions

Applications

• Factory automation processes
• Automated doors
• Aerospace applications
• Agricultural equipment

Why does a double-acting pneumatic piston rod cylinder need two ports?

Two ports are needed to control pressure and produce thrust from both ends. One of the ports causes the piston to extend, while the other retracts it.
