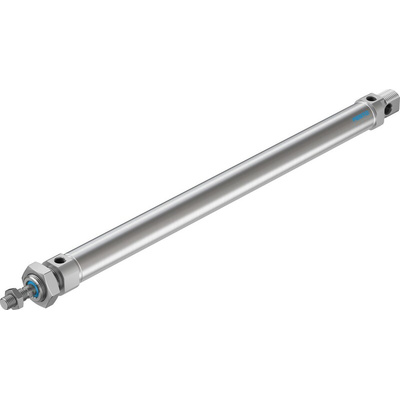

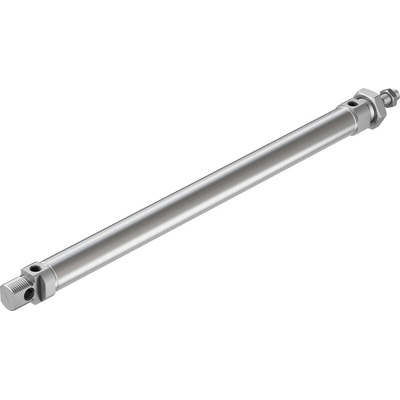

DSNU-25-400-P-A, Festo Pneumatic Piston Rod Cylinder - 35191, 25mm Bore, 400mm Stroke, DSNU Series, Double Acting

Festo Pneumatic Piston Rod Cylinder, 1 to 10 Bar Operating Pressure Range, Elastic Cushioning - DSNU-25-400-P-A

When space is at a premium, choose this pneumatic piston rod cylinder from Festo to keep automated systems compact. The rounded shape narrows down the barrel to a width of 26.5mm, making it easy to fit inside compact equipment. With a long stroke of 400mm and a double action, the cylinder is well-suited to positioning tasks on conveyors and assembly lines. It's also helpful for operating gates and hoists. Elastic cushioning at each end is on hand to absorb excess energy and ensure movements stay smooth.

Features & Benefits

• Operating temperature range between -20°C and +80°C to handle challenging plant conditions
• Compatible with SMT-series proximity sensors (such as 121-5836) for precise position detection

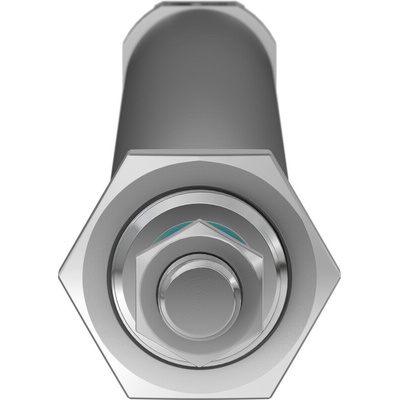

• Threaded rod end makes it a doddle to add accessories

Applications

• Automotive industry
• Food and beverage production
• Construction sites
• Material handling

How much force can this cylinder handle?

Thanks to its high-alloy stainless steel rod and barrel, this pneumatic cylinder is built for strength. The robust construction means it can handle a theoretical force of 294.5N on the advance stroke when it's used at a pressure of 6 bar.
