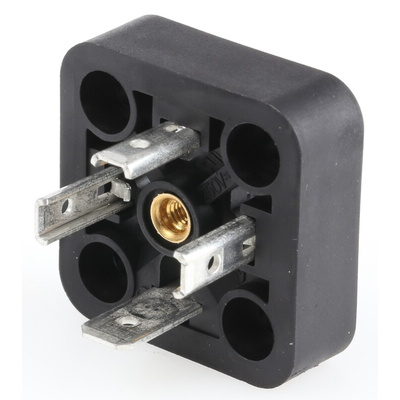

932597100 GSA 3000, Hirschmann GSA 3P+E DIN 43650 A, Male Solenoid Valve Connector, No, 400 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, 16A Rated Current, Tin Contact Surface - GSA Series - 932597100 GSA 3000

Use this connector from the Belden Hirschmann range to connect solenoid valves to your pneumatic and hydraulic equipment. Its 3P+E contact configuration makes it a practical choice for 3-phase electrical circuits. PA housing provides impact resistance to the component, so you can use it in rugged industrial settings. This material also serves as an insulator to protect you from electric shocks during operation, which enhances workplace safety.

Features & Benefits

• Tin contacts are highly conductive and achieve a reliable connection
• 16A current rating for use in high-current devices
• Wide operating temperature range of -40ºC to +125ºC for use in extreme conditions

Applications

• Water treatment plants
• Chemical laboratories

Is this connector dustproof and waterproof?

This connector has an IP65 rating when mated with a nitrile rubber gasket. This indicates that it's dustproof and protected against low-pressure jets of water.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

Datasheet

Catalogue - Valve Connectors Industrial Connectivity Solutions
