DSNU-32-100-P-A, Festo Pneumatic Piston Rod Cylinder - 195984, 32mm Bore, 100mm Stroke, DSNU Series, Double Acting

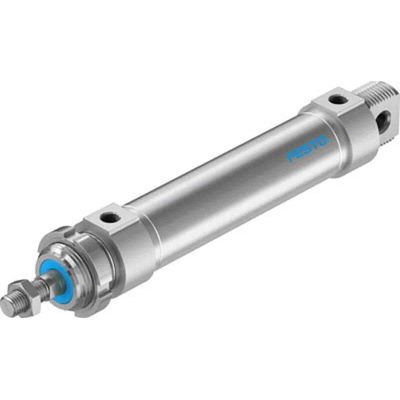

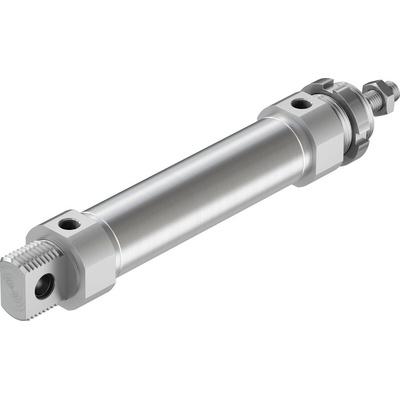

Festo Pneumatic Round Cylinder, 32mm Bore, 100mm Stroke - DSNU-32-100-P-A

Use this pneumatic cylinder from Festo to convert compressed air into motion and force to drive your automated systems and machines. It's a double-acting cylinder that generates force in both extending and retracting directions, giving you greater efficiency and precision in the movement that results. The cylinder is constructed from stainless steel, so it won't corrode. The steel piston rod within delivers a 100mm stroke and is suitably strong to provide reliable and effective operation. This device has a piston diameter of 32 mm.

• Robust pneumatic cylinder with a compact size
• Self-adjusting pneumatic end-position cushioning provides protection against damage from excessive force
• Wide ambient temperature range of -20˚C and +80˚C for a variety of industrial environments

Applications

• Factory automation systems
• Materials handling and manufacturing
• Food and beverage industry
• Automotive manufacturing

What's the difference between single-action and double-action pneumatic cylinders?

The terms 'single-action' and 'double-action' refer to the number of ports providing the air pressure that generates the necessary force. A single-action cylinder has one port for air to enter, while a double-action cylinder has two. Double-action cylinders are generally stronger and faster devices.

Datasheet - DSNU-32-100-P-A

Catalogue - DSNU-32-100-P-A

Instruction Sheet - DSNU-32-100-P-A
