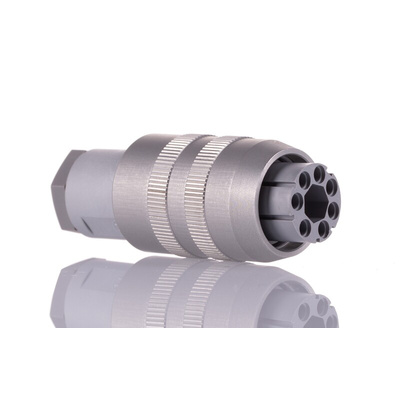

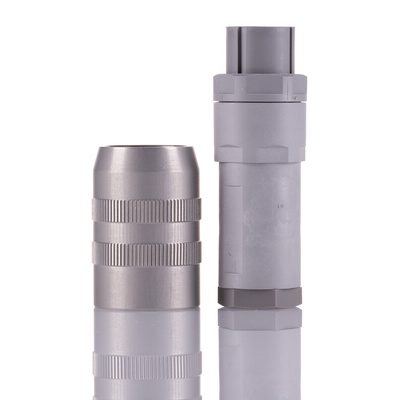

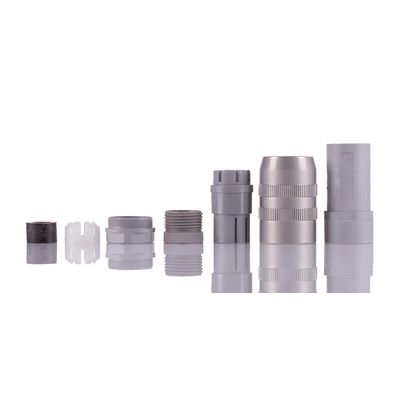

931720001 N6R EF, Hirschmann, N6R 7 Pole Din Socket, DIN 43651, 10A, 250 V ac IP65, IP67, Female, Cable Mount, Разъем

Cable Plug & Sockets, Shells

Belden Hirschmann DIN Socket, Crimp Terminations, 50 Maximum Mating Cycles - N6R Series - 931720001 N6R EF

Looking for a cable connector for your measurement system? Try this DIN socket from Belden's Hirschmann range. As it connects cables together to create robust electrical links between your equipment, it's practical for control applications involving mechanical stresses or in harsh industrial settings. The socket is IP65-rated, which means it's totally dustproof and withstands low-pressure jets of water from any angle.

Features & Benefits

• Maximum cross-section of 1.5mm² means it's compatible with wires up to 17AWG
• Shielding ensures high-quality transmissions with minimal interference
• Earthing minimises risk of equipment damage caused by static voltages when plugging in
• Glass-fibre reinforced plastic body resists impact, wear and abrasion

Applications

• Valve sensors
• Current monitors
• Pump drives

What temperatures can I use this product in?

This DIN socket tolerates a temperature range of -25°C to +90°C, so you can trust it's safe to use in demanding industrial environments.

Hirschmann NR Plastic

Robust 6 and 11 pole connectors, made from glass-fibre reinforced plastic, which conform to DIN 43651. Suitable for a variety of applications, including:

Mains and control lead connections to limit valve sensors, limit switches and current monitors
Small transmission systems, pump drives and systems subject to vibrations
Machine tools and automation technology

Note

The earthing contact in each mating half protects sensitive electronic components against static voltages during the plugging operation.
Contacts must be ordered separately. Plug shells accept pin contacts, socket shells accept socket contacts.
The in-line coupler mates with the 6+E cable mount socket, stock no. 202-1936.
The ratchet and plier style support crimp tooling (stock no. 450-4411) (note: is also suitable for QM single and two piece contacts (see stock no. 466-804 for contact details).
The plier tool (stock no. 468-686) can also be used to crimp contacts for the Circular Sealed Industrial IP67 connector range and the Sealed Industrial IP68 connector range (stock no. 489-526). Instructions supplied with tools. These tools support this range, but are not manufactured by Hirschmann.

N6R Series Connector Data Sheet

Connectors for Control Signals - NR Series

Datasheet - 931720001 N6R EF
