932630106 N11R EF, Hirschmann, N11R 12 Pole M26 Din Socket, DIN 43651, 5A, 60 V ac IP65, Female, Cable Mount, Разъем

Cable Plug & Sockets, Shells

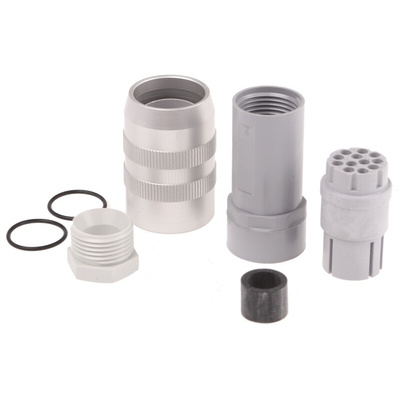

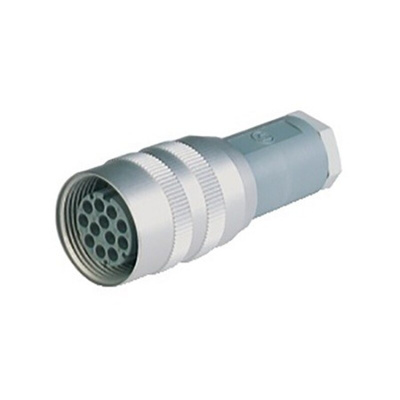

Belden Hirschmann DIN Socket, 5A Current Rating, M26 x 1.5 Thread - 932630106 N11R EF

When you need an easy way to connect a control lead to a limit switch or current monitor, choose this 12-pin DIN socket from Belden Hirschmann. It uses simple crimp termination to make a strong and reliable connection. A clamping cage provides strain relief to protect your cables against damage. Thanks to its voltage rating of 60V AC/DC, this is a good choice for use in low-voltage applications.

Features & Benefits

• Silver contacts are highly conductive and resistant to corrosion, so ensure a reliable connection
• Polyester housing resists abrasion and wear to deliver a long service life
• Earth contact to protect your equipment against electrical hazards

Applications

• Small transmission systems
• Machine tools
• Automation technology

Is this socket water-resistant?

Yes, this socket has an IP65 rating, which means it's protected against low-pressure water jets, as well as dust.

Hirschmann NR Plastic

Robust 6 and 11 pole connectors, made from glass-fibre reinforced plastic, which conform to DIN 43651. Suitable for a variety of applications, including:

Mains and control lead connections to limit valve sensors, limit switches and current monitors
Small transmission systems, pump drives and systems subject to vibrations
Machine tools and automation technology

Note

The earthing contact in each mating half protects sensitive electronic components against static voltages during the plugging operation.
Contacts must be ordered separately. Plug shells accept pin contacts, socket shells accept socket contacts.
The in-line coupler mates with the 6+E cable mount socket, stock no. 202-1936.
The ratchet and plier style support crimp tooling (stock no. 450-4411) (note: is also suitable for QM single and two piece contacts (see stock no. 466-804 for contact details).
The plier tool (stock no. 468-686) can also be used to crimp contacts for the Circular Sealed Industrial IP67 connector range and the Sealed Industrial IP68 connector range (stock no. 489-526). Instructions supplied with tools. These tools support this range, but are not manufactured by Hirschmann.
