DGST-10-20-PA, Festo Pneumatic Guided Cylinder - 8085117, 10mm Bore, 20mm Stroke, DGST Series, Double Acting

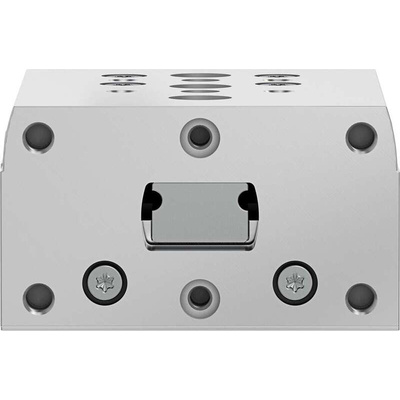

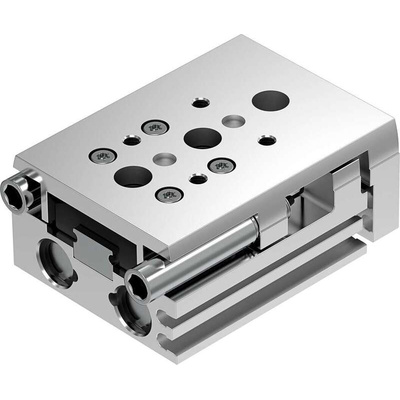

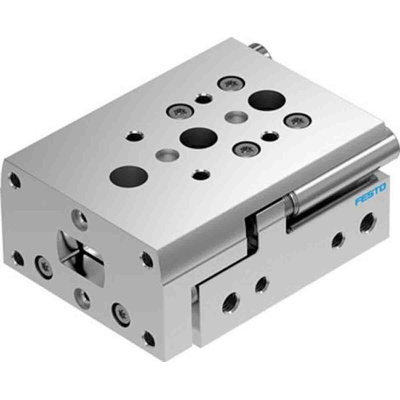

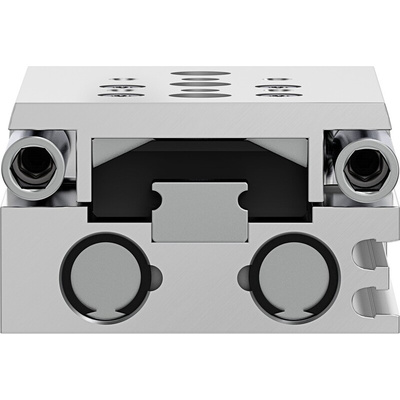

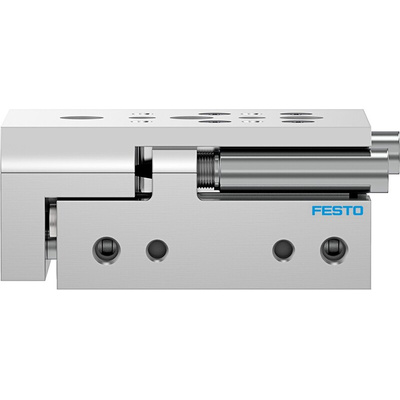

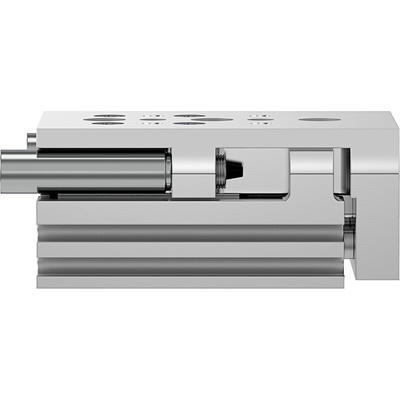

Festo Pneumatic Guided Cylinder, 10mm Bore, 20mm Stroke - DGST-10-20-PA

Fit this double-acting cylinder from Festo in your pneumatic systems for precise driving and guiding operations. It's compatible with proximity sensors, so can be used to ensure accurate movement in your equipment. You'll also find it a useful addition to regulate the speed of flow control valves. The unit features steel-alloy pistons and wrought-aluminium housing, so it offers resistance to wear and corrosion and can be safely used in demanding environments. To prevent friction, enable smooth movement and deliver reliable long-term performance, this component has a recirculating ball bearing guide.

• Operating temperature range of -10°C to +60°C for use in demanding industrial conditions
• Functioning pressure range of 1 to 8 bar for heavy-duty applications
• Weighs just 277g, for easy handling and minimal system strain

Applications

• Automation and robotics
• Fast-moving consumer goods (FMCG) industry
• Automotive manufacturing

How does a double-acting cylinder work?

A double-acting cylinder has two ports at each end – one for air pressure and one for exhaust. They can be positioned in different ways to control the extension and retraction of the cylinder piston. The port that has the most air pressure controls the unit's momentary movement.
