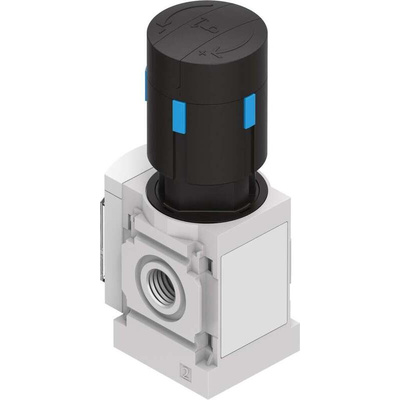

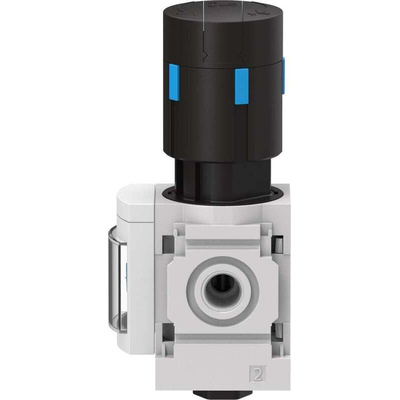

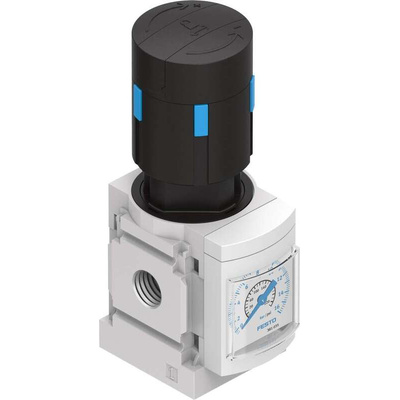

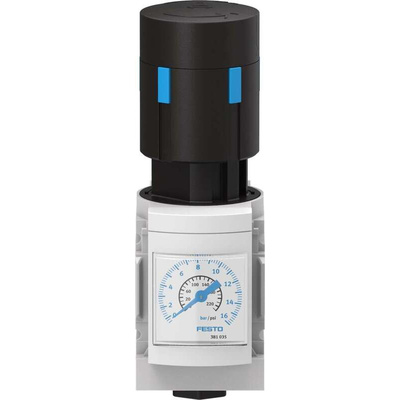

MS4-LR-1/4-D7-AS-Z, Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 14bar max. input, 529420

Festo Pneumatic Regulator, 225g Weight, NBR Seals - MS4-LR-1/4-D7-AS-Z

Need to ensure stable transmission of compressed air around your system? This pneumatic regulator from Festo is the steadying hand you need. It closely controls the supply, ensuring that your equipment always gets a preset output regardless of fluctuations in the supply. The unit's die-cast aluminium housing withstands impact, so you can rest assured of long-term performance – even in harsh environments. As this material is also corrosion-resistant, there's no risk of rust contamination getting into the air. Easy operation comes courtesy of a top-mounted rotary knob that you can lock to prevent tampering. As this is a light component, weighing in at just 225g, it won't add strain to your setup.

Features & Benefits

• Withstands an operating temperature range between -10°C and +60°C, making it a safe choice for demanding conditions
• NBR seals block out contaminants and prevent leakages to ensure optimal performance
• Widely compatible G1/4 threaded port makes installation simple, saving time and hassle
• Can be assembled in any position for flexibility

Applications

• Water treatment plants
• Packaging equipment
• Oil and gas industries

How much pressure can this regulator withstand?

The unit has a pressure regulation range between 0.5 and 12 bar, so it's a versatile pick.

Datasheet - MS4-LR-1/4-D7-AS-Z

Brochure - Simply Part of the Solution

Instruction Sheet - MS4/6-LFR/LR(B)/LF(M)/LFX/LWS Series
