VPPE-3-1-1/8-6-010-E1, Festo G 1/8 Pneumatic Regulator - 0.06bar to 6bar, 8bar max. input, 557772

Festo G 1/8 Pneumatic Regulator, 0.06 to 6 Bar - VPP Series - VPPE-3-1-1/8-6-010-E1

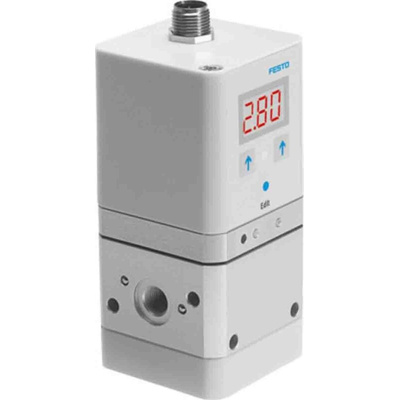

This pneumatic regulator from Festo offers precise control in variable pressure and flow systems. The 3-way function regulator is pilot actuated, so it's ideal for simple, energy-efficient applications such as leak testing systems. The unit has an IP65 rating for ingress protection, which means it's dust-tight and secured against water jets. A digital controller lets you conveniently set the input range, while the LED display makes it easy to operate. The unit has a soft seal to prevent leakage and ensure the reliability of your pneumatic system.

• Maximum input pressure of 8 bar
• Minimum outlet pressure of 0.06 bar
• Maximum outlet pressure of 6 bar
• G 1/8 port connection
• Typical flow rate of 800 L/min
• Nominal pressurisation diameter of 5 mm
• Nominal exhaust diameter of 2.5 mm
• Mechanical spring reset
• Operating voltage range of 21.6 to 26.4 V DC

Range Information

• The VPPE series is Festo's range of compact, easy-to-operate and reliable proportional valves
• Valves in the series are suitable for use with filtered unlubricated air (40 μm)
• Copper-free construction ensures good resistance against rust and corrosion
• Password protection available for secure and tamper-proof use

The Festo VPPE Proportional pressure regulator is a 3-way valve function regulator with segment LED display. The pressure range is up to 6 bar with analogue set point of 10V.

Pressurisation - 5 mm,
Nominal diameter, exhaust - 2.5 mm
Assembly position - any (preferably upright)

Datasheet - VPPE-3-1-1/8-6-010-E1

Instruction Sheet

Proportional-Pressure Regulators VPPE
