LR-1/4-D-MINI, Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 1/4 in, 16bar max. input, 159625

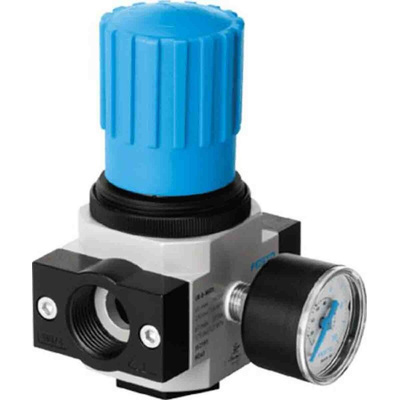

Festo G 1/4 Pneumatic Regulator, 0.5 bar to 12 bar - D Series - LR-1/4-D-MINI

This Festo D series mini pressure regulator will keep your pneumatic systems operating efficiently. It can be manually controlled and its built-in pressure gauge lets you accurately adjust the outlet pressure to your requirements. A working pressure of up to 12 bar and a maximum input pressure of 16 bar make the pneumatic regulator suitable for both low and high-pressure situations. The rotary knob allows for easy alignment with other components, while the actuator lock ensures a secure assembly.

• Weight of 350 g
• Minimum outlet pressure of 0.5 bar
• Maximum outlet pressure of 12 bar
• Maximum input pressure of 16 bar
• Typical flow rate of 1500 L/min
• Minimum operating temperature of -10°C
• Maximum operating temperature of +60°C
• Versatile and suitable for both compressed air and inert gases
• Die-cast zinc housing and connecting plate are corrosion-resistant for extra reliability

Range Information

• Festo D Series components give you precise control over the flow of air through pneumatic systems
• Units available in mini, midi and maxi sizes
• Suitable for a wide range of applications with standard compressed air requirements
• Durable metal design means long operating life even in harsh industrial environments

The Festo D series MINI size pressure regulator has a G1/4 pneumatic port connecting thread. It is a directly-controlled diaphragm regulator design structure with pressure gauge. The regulator has a working pressure up to 12 bar.

Actuator lock - rotary knob with lock
Assembly position - any
Nominal flow rate - 1,500 l/min

Datasheet - LR-1/4-D-MINI

Catalogue - LR-1/4-D-MINI

InstructionSheet - LR-1/4-D-MINI
