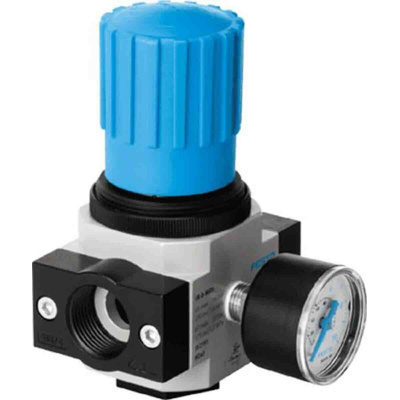

LR-1/4-D-7-MINI, Festo G 1/4 Pneumatic Regulator - 0.5bar to 7bar, 1/4 in, 16bar max. input, 162583

Festo G 1/4 Pneumatic Regulator, 0.5 bar to 7 bar - D Series - LR-1/4-D-7-MINI

Festo's efficient G 1/4 pneumatic pressure regulator lets you maintain constant pressure in your pneumatic system, ensuring no compressed air is wasted. With a working pressure range between 0.5 and 7 bar, it's suited to a variety of pneumatics applications, including medical equipment and compressed air pumps. It also features an analogue gauge to enable precise adjustment. The housing and connecting plate of the pneumatic regulator are both made of die-cast zinc, offering corrosion resistance for better reliability in the long term.

• G 1/4 connecting thread
• Weight of 350 g
• Minimum outlet pressure of 0.5 bar
• Maximum outlet pressure of 7 bar
• Maximum input pressure of 16 bar
• Typical flow rate of 1600 L/min
• Minimum operating temperature of -10°C
• Maximum operating temperature of +60°C
• Can be used for both compressed air and inert gases

Range Information

• Festo D Series components feature sturdy metal construction to withstand heavy industrial usage
• The range features both combination and individual air preparation units
• Available in a wide range of sizes from micro to maxi
• Suitable for all standard compressed air applications

The Festo D series MINI size pressure regulator has a G1/4 pneumatic port connecting thread. It is a directly-controlled diaphragm regulator design structure with pressure gauge. The regulator has a working pressure up to 7 bar.

Actuator lock - rotary knob with lock
Assembly position - any
Nominal flow rate - 1,600 l/min
