MS6-LR-1/2-D7-AS-Z, Festo G 1/2 Pneumatic Regulator - 0.5bar to 12bar, 20bar max. input, 529994

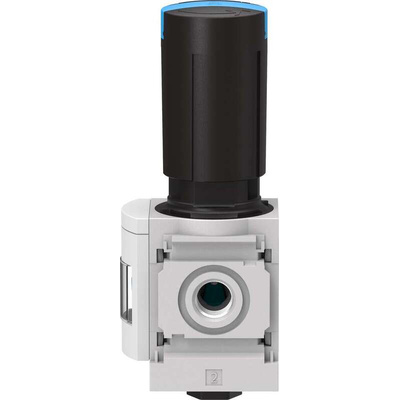

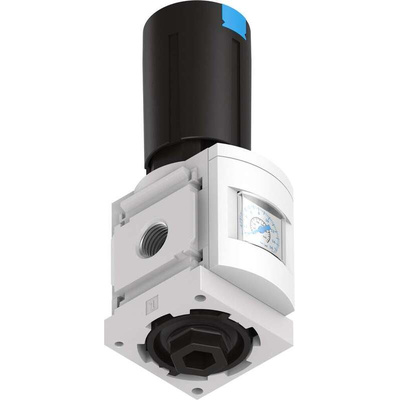

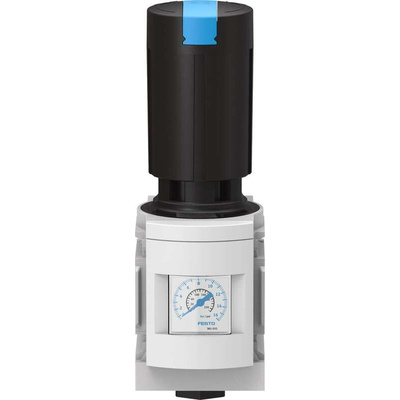

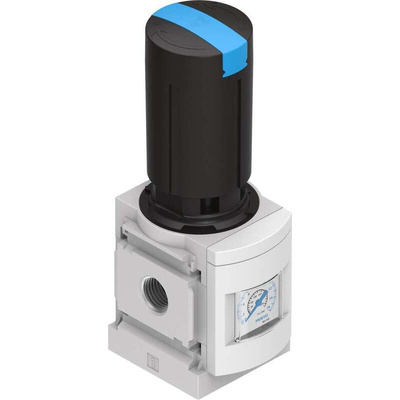

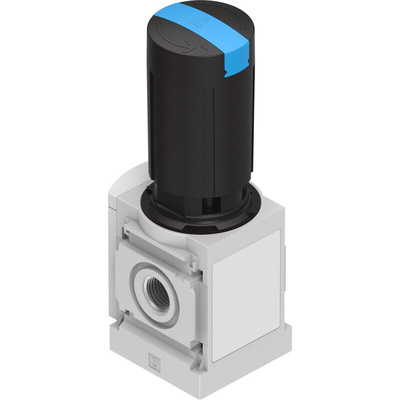

Festo Pneumatic Regulator, PE Filter, Die-Cast Aluminium Housing - MS6-LR-1/2-D7-AS-Z

For a pneumatic system that ticks along smoothly, grab this regulator from Festo. It maintains a steady preset input pressure to your equipment regardless of instability at the supply. This protects your downstream instruments from overpressure that could lead to failure. The unit's regulation range between 0.5 and 12 bar makes it suitable for both light-duty and heavy-duty applications. It comes with a top-mounted lockable rotary knob so you can fix the necessary limit and prevent tampering. The knob is knurled, so it's easy to use, even with a gloved hand.

Features & Benefits

• Durable die-cast aluminium housing resists corrosion and impact, making it fit for harsh environments
• Can be assembled in any position so it's a versatile choice
• Light weight of 730g means it's easy to handle during installation
• Includes a PE filter to keep contaminants out and prevent blockage of pneumatic channels
• High flow rate of 5,500L/min so it keeps up with demanding tasks

Applications

• Marine engineering
• Automotive industry
• HVAC systems

Can I use this regulator in harsh industrial environments?

Yes, it has an operating temperature range between -10°C and +60°C, so it's a safe choice for industrial conditions.

Datasheet - MS6-LR-1/2-D7-AS-Z

Brochure - Simply Part of the Solution

Instruction Sheet - MS4/6-LFR/LR(B)/LF(M)/LFX/LWS Series
