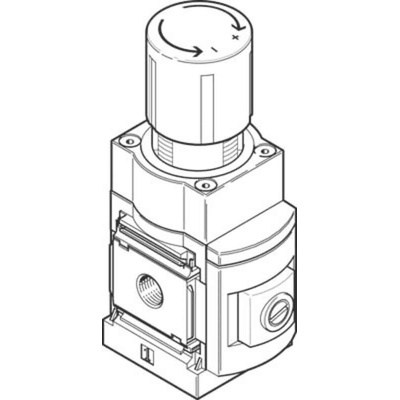

MS6-LRP-1/4-D2-A8, Festo G 1/4 Pneumatic Regulator - 0.05bar to 0.7bar, 1/4 in, 14bar max. input, 538004

Festo G 1/4 Pneumatic Regulator, 0.7 bar Maximum - MS Maximum Series - MS6-LRP-1/4-D2-A8

Maintain the output air pressure in pneumatic systems with this Festo pneumatic regulator. This type of regulator is commonly used in pneumatic air compressors, where it automatically cuts off the airflow when it reaches a certain pressure. This provides quick and accurate regulation, so you don't waste any compressed air. It has a piloted precision diaphragm design and is fitted with a standard G 1/4 threaded connection. You can use it with compressed air at pressures between 1 and 14 bar.

• Maximum input pressure of 14 bar
• Maximum outlet pressure of 0.7 bar
• Minimum outlet pressure of 0.05 bar
• Typical flow rate of 800 L/min
• Operating temperature range of -10˚C to +60˚C
• Height of 189.1 mm
• Width of 77 mm
• Length of 62 mm
• Aluminium housing
• Nitrile rubber seals

Range Information

• Festo's MS Maximum pressure/flow sensors are easily integrated with the rest of the MS series of service units without additional installation time
• These regulators allow for individual configuration in modular systems
• Items in this range feature built-in safety valves

The Festo MS series indirectly controlled regulator has a thread connection size of G1/4 . The piloted precision diaphragm design structure regulator design structure has a working pressure up to 0.7 bar.

Actuator lock - rotary knob with lock
Assembly position - any
Size - 6

Datasheet - MS6-LRP-1/4-D2-A8

Catalogue - MS6-LRP-1/4-D2-A8

InstructionSheet - MS6-LRP-1/4-D2-A8
